Rubber Hardness Tester Shore A

• Measuring Principle: The principle used to measure hardness is based on the resistance force of a pin’s penetration into the test material under a known spring load. The amount of penetration (max. 2.54mm / 0.1in.) is then converted to a hardness reading on a scale with 100 units.
• Measuring Range: 0-100 units, offering a broad range of hardness measurements.
• Standards: Conforms to DIN 53505 and ASTM D2240 standards for reliable and consistent results.
• Accuracy:

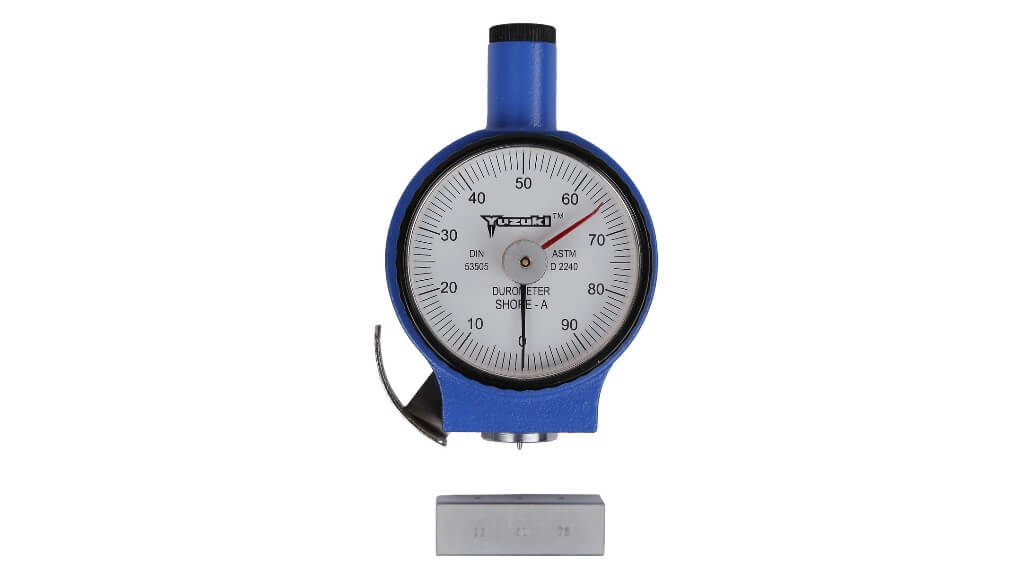

  Export Model: ±1 Shore Hardness Unit.

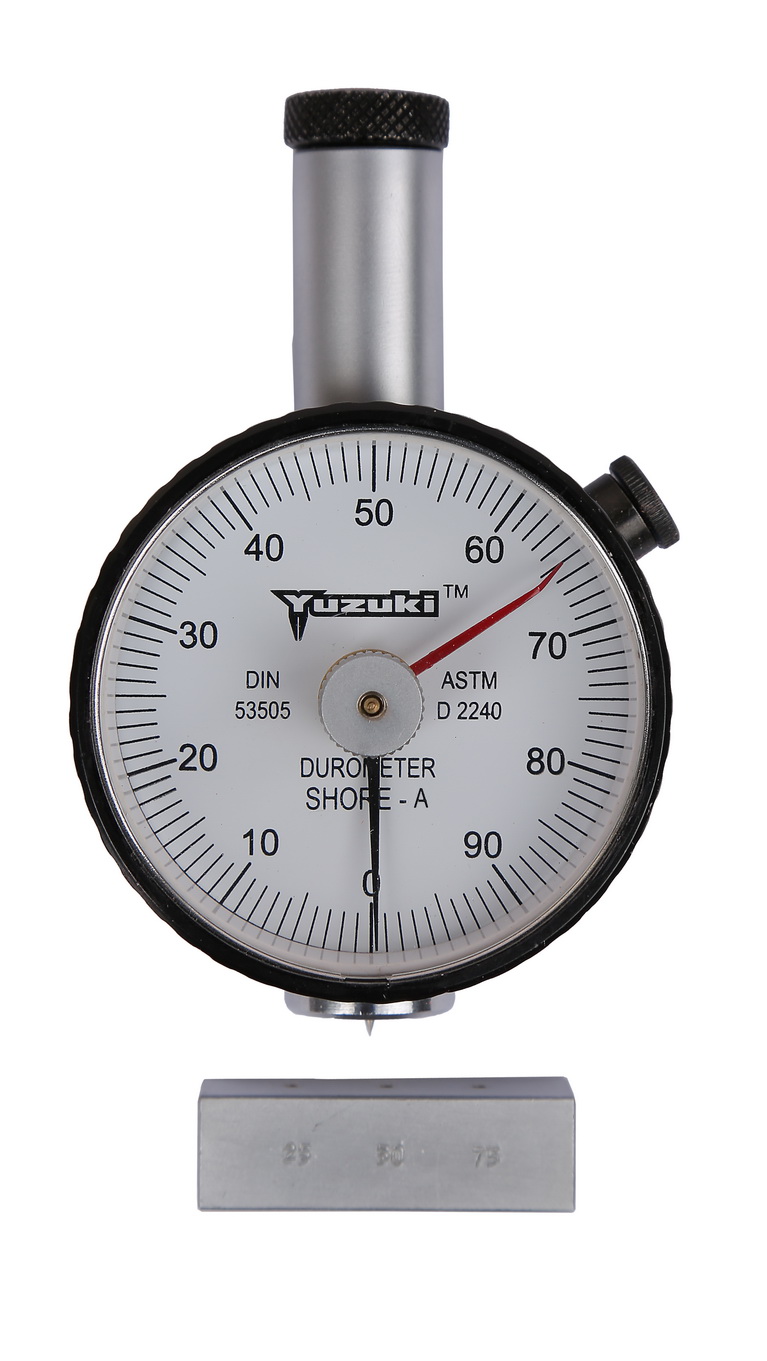

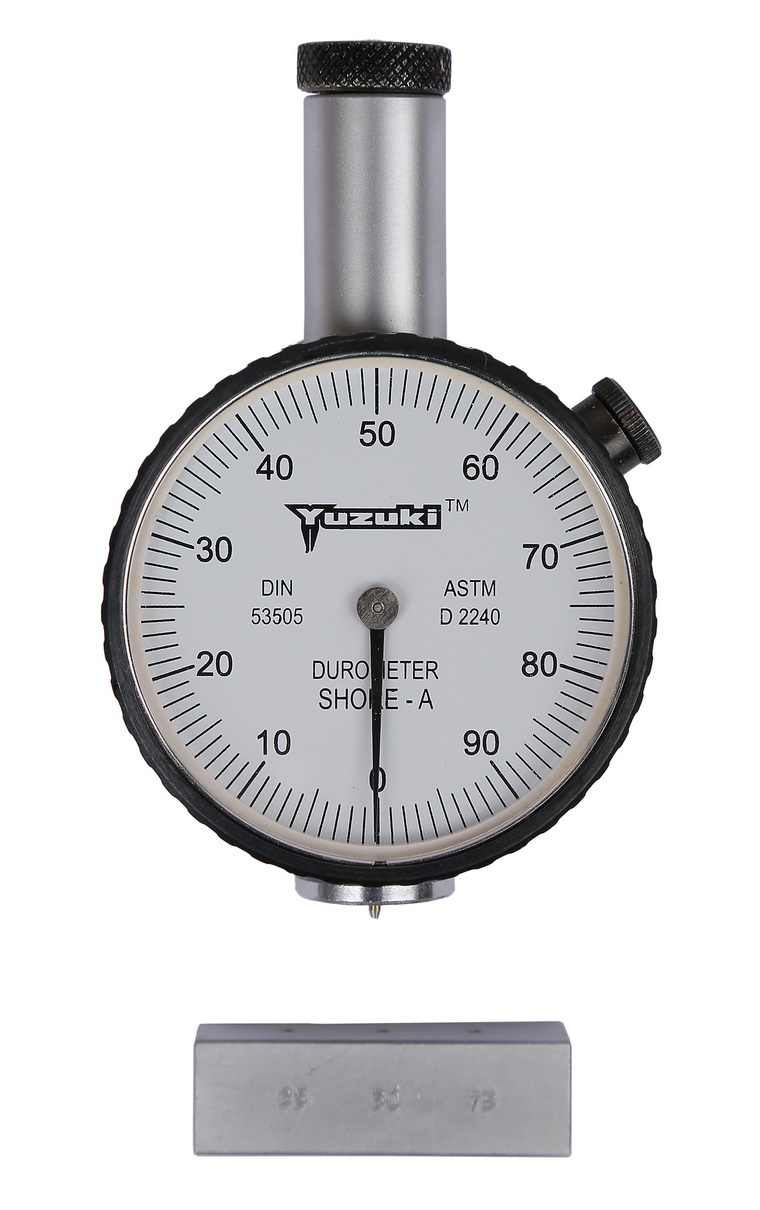

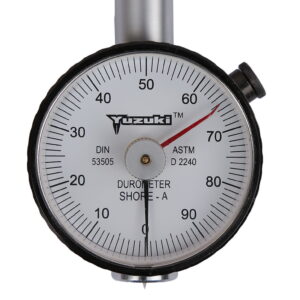

  Single Needle and Pin Pointer Model: ±1 ½ Shore Hardness Unit.
• Recommended Scale: As per ASTM D2240 Standard, readings below 10 and above 90 are not considered reliable and should be discarded. Therefore, it’s important to select the appropriate scale that will provide results between 10-90 units.
• Base Contact Area: Diameter 18mm, ensuring stable and accurate readings.
• Indentors: Made of HSS (High-Speed Steel) and fitted with Linear Bearings for smooth and precise operation.
• Contact Base Surface: Ground and hard chrome-plated for durability and improved performance.
• Code No: DSSA for product identification.
• Max Work Height/Width: 80mm x 100mm, providing sufficient space for various testing applications.
• Mass of Dead Weight: 1kg, ensuring stable and accurate testing conditions.
• Gross Weight: 7kg, making it easy to transport while maintaining durability.
• Dimensions: 100mm x 150mm x 300mm, compact yet efficient for workshop use.

Achieve accurate hardness testing with the YUZUKI® Rubber Hardness Tester Shore A, perfect for rubber, elastomers, and soft plastics. Designed for professionals in manufacturing and quality control, it ensures precise measurements with ease. Its ergonomic design, durable build, and compliance with industry standards make it ideal for industrial and laboratory use. Explore, enquire, or purchase this reliable tool today!
