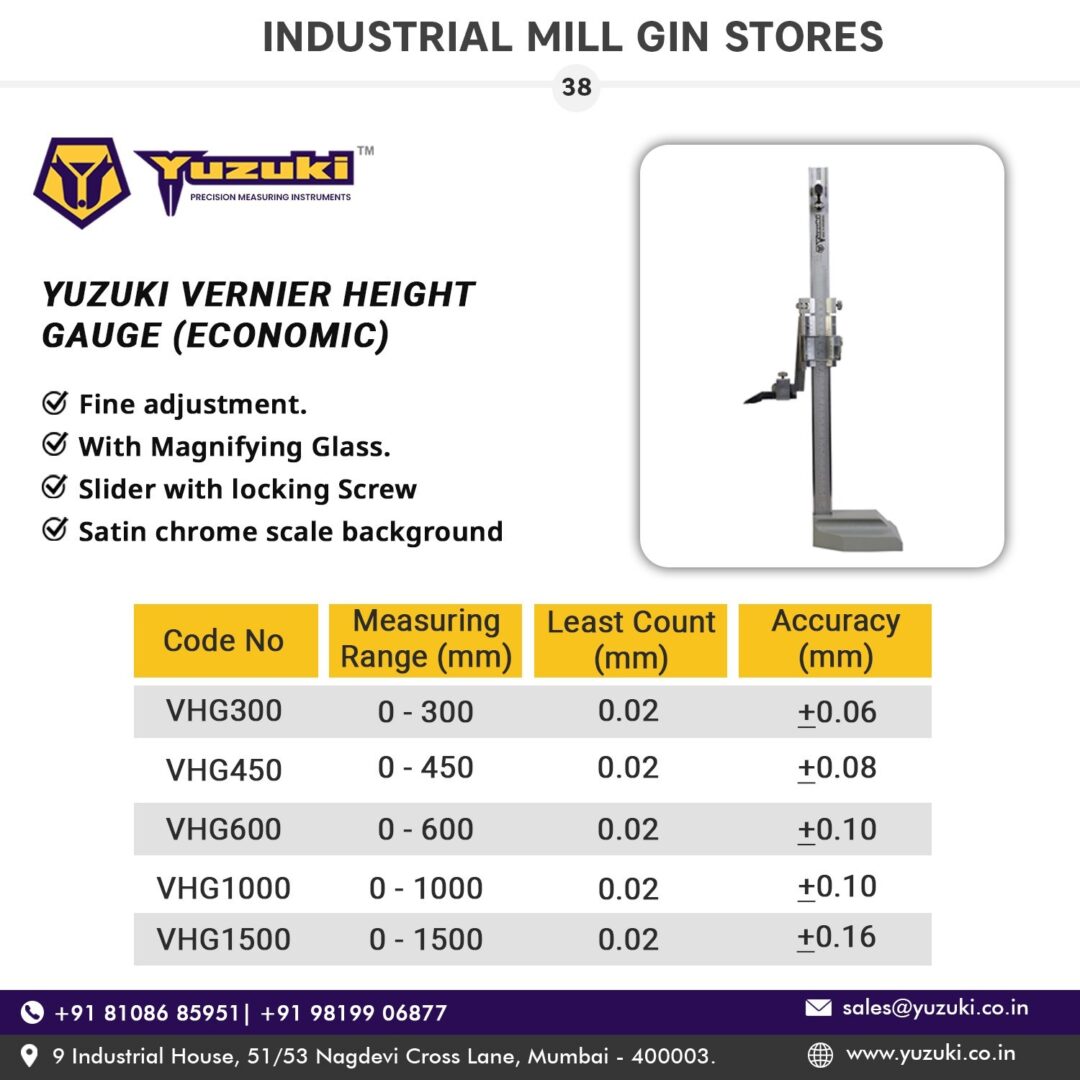

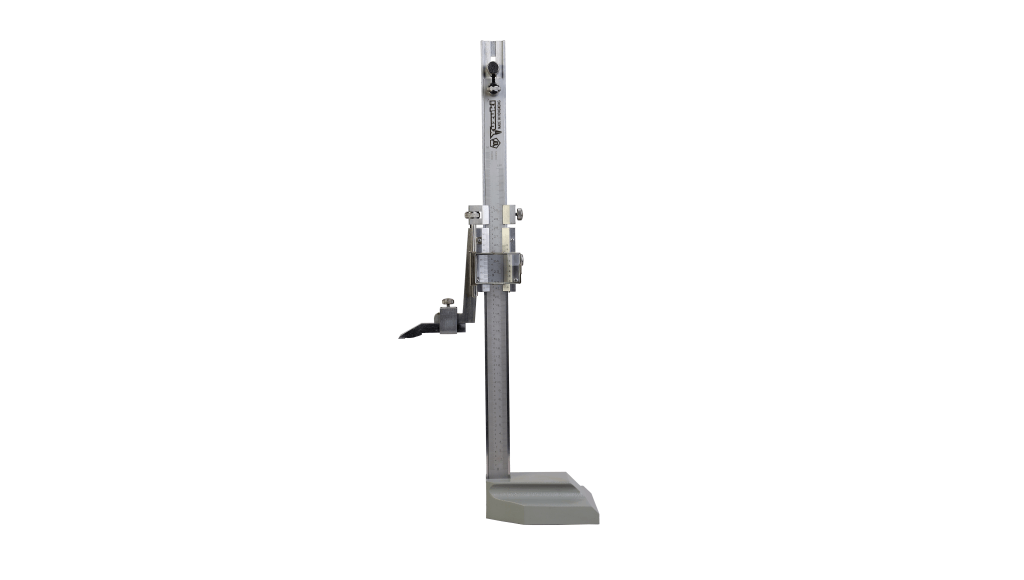

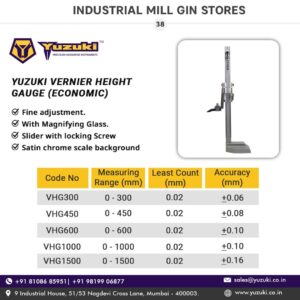

Vernier Height Gauge

• Used for Height Measurements and Scribing: Ideal for precise height measurements and fine scribing on workpieces.
• Carbide-Tipped Scriber: Equipped with a carbide-tipped scriber for fine, detailed scribing on workpieces.
• Magnifying Glass: Includes a magnifying glass for improved visibility and accurate measurements.
• Fine Adjustment: Provides fine adjustment for enhanced precision during measurements.
• Slider with Locking Screw: Features a slider with a locking screw to secure the measurement position for consistency.
• Satin Chrome Scale Background: The satin chrome finish on the scale background ensures durability and readability over time.

Achieve unparalleled accuracy with the YUZUKI® Vernier Height Gauge, designed for precise height measurements in engineering, machining, and woodworking. Built for professionals, it offers reliable performance with easy-to-read markings and a smooth sliding mechanism. Durable and efficient, it ensures consistent results in every application. Visit now to enquire or purchase this essential tool!

The YUZUKI® Vernier Height Gauge is a precision measurement tool designed for accurate height measurements and marking in engineering, machining, and inspection applications. Crafted with durable materials and a finely calibrated vernier scale, it ensures reliable readings and long-lasting performance. This versatile tool is an essential addition to any professional workshop or laboratory, offering precision and ease of use.

Applications:

1. Engineering and Machining:
   Ideal for measuring the height of components and tools, ensuring precise alignment in machining operations.
2. Quality Control and Inspection:
   Used for marking accurate reference points and verifying dimensions of parts.
3. Woodworking and Fabrication:
   Perfect for accurate height measurements and marking during fabrication and assembly processes.
4. Tool and Die Making:
   Ensures accurate measurements and settings for dies, molds, and tooling.

Advantages/Benefits:

• Precision Measurement:
  Provides highly accurate readings for critical measurement tasks.
• Durable Construction:
  Built with robust materials to withstand heavy use and maintain accuracy over time.
• Ease of Use:
  Features easy-to-read markings and a smooth sliding mechanism for effortless operation.
• Versatile Applications:
  Suitable for a wide range of industries, from machining to woodworking.
• Improved Workflow:
  Enhances efficiency and accuracy in measurement and marking tasks, reducing errors and saving time.

With its exceptional accuracy, reliability, and ease of use, the YUZUKI® Vernier Height Gauge is a trusted tool for professionals seeking superior performance in their measurement tasks.

The YUZUKI® Vernier Height Gauge is a versatile tool designed to provide precise height measurements and accurate markings. Here’s a step-by-step guide to using the product effectively:

1. Preparation

• Clean the Surface: Ensure the workpiece and the surface plate are clean and free of dust or debris for accurate readings.
• Stabilize the Height Gauge: Place the base of the gauge securely on the surface plate or flat working area to prevent movement during use.

2. Setting Zero

• Position the Measuring Jaw: Lower the measuring jaw to touch the surface plate.
• Zero Adjustment: Adjust the vernier scale to set it to zero if required, ensuring accurate measurements from the base level.

3. Measuring Height

• Align the Gauge: Position the workpiece under the measuring jaw.
• Slide the Measuring Jaw: Move the jaw gently along the column until it makes contact with the top of the object.
• Lock the Jaw: Tighten the locking screw to hold the jaw in place and prevent movement during reading.

4. Reading the Measurement

• Check the Vernier Scale: Observe the main scale and the vernier scale to determine the height measurement.
• Add the Values: Combine the readings from the main scale and the vernier scale for precise measurement.

5. Marking Reference Points

• Attach the Scriber: If marking is required, attach the scriber to the measuring jaw.
• Mark the Workpiece: Gently slide the scriber along the desired point to create accurate markings.

6. Special Features

• Repeatability: For consistent measurements, ensure the jaw is securely locked and the surface plate remains stable.
• Comparative Measurement: Use the gauge to compare the height of multiple workpieces for quality control.

Tips for Optimal Use

• Handle the gauge carefully to avoid damage to the scale or measuring jaw.
• Store the tool in a clean, dry place to maintain its accuracy and durability.
• Regularly check for calibration to ensure consistent performance.

Using the YUZUKI® Vernier Height Gauge correctly ensures precise results, making it an indispensable tool for professionals in engineering, machining, woodworking, and quality control.
