| Range | AA-60101 : 130L x 25W x 30H C.D. 100mm, AA-60102 : 245L x 40W x 60H C.D. 200mm, AA-60103 : 350L x 55W x 80H C.D. 300mm |
|---|

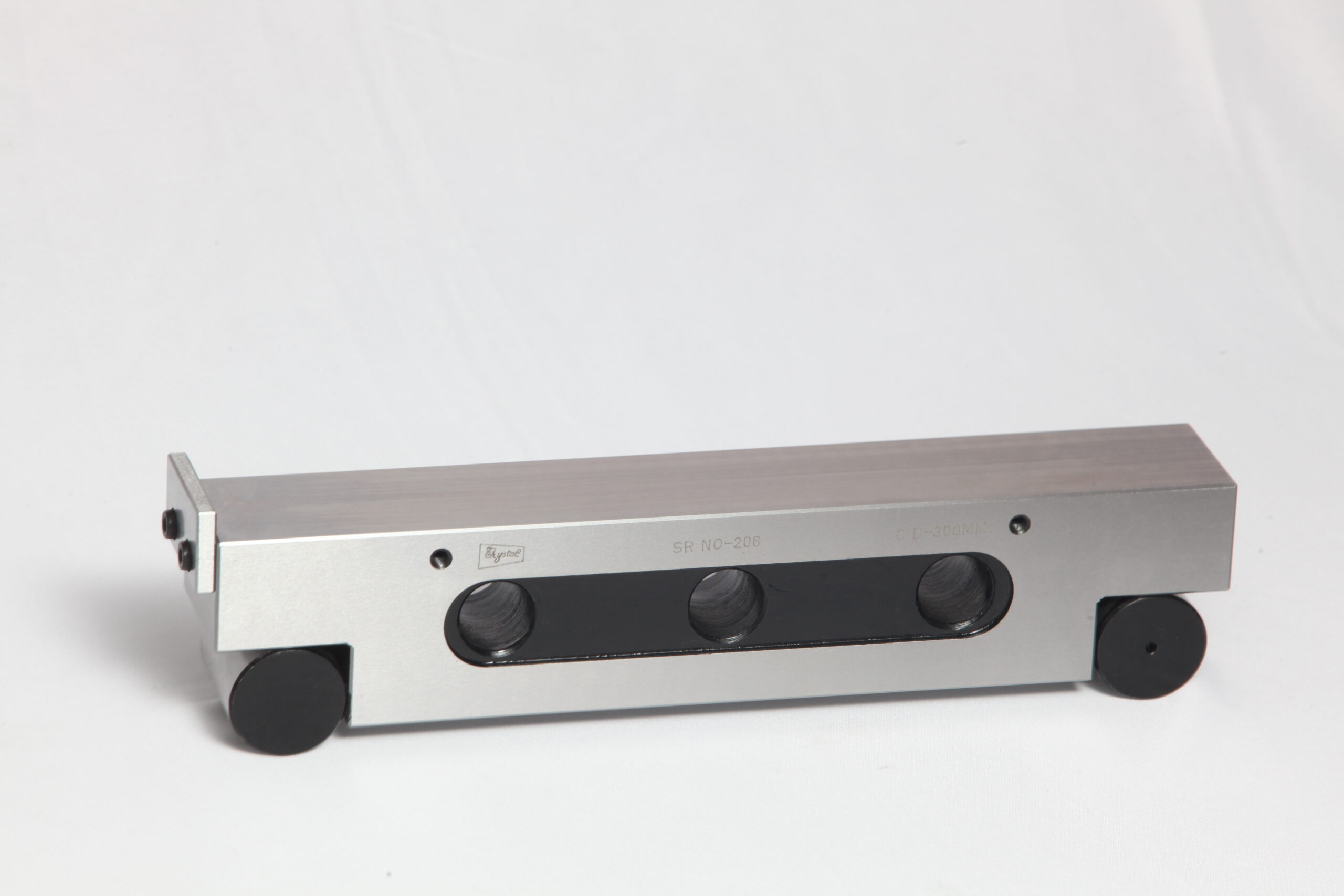

CRYSTAL Sine Bar
₹3,736 – ₹7,049
Product Features
Features for CRYSTAL Sine Bar Series AA601 :
- Constructed from high-quality alloy steel for maximum durability and precision.
- Ideal for precise angle measurement and setting, ensuring accurate results.
- The center distance between rollers is maintained within 0.003 mm for superior precision.
- Provides exceptional accuracy for squareness, flatness, and parallelism within ±0.005 mm.
- Hardened to 55 HRC ±2 HRC to guarantee enhanced performance and resistance to wear.
| Sr. | Code | L * H * W | C.D. (mm) |
|---|---|---|---|
| 1 | AA-60101 | 130 x 25 x 30 | 100 |
| 2 | AA-60102 | 245 x 40 x 60 2 | 200 |
| 3 | AA-60103 | 350 x 55 x 80 | 300 |
The CRYSTAL Sine Bar is a high-precision tool designed for setting and measuring angles with utmost accuracy. Made from durable alloy steel, it ensures reliable performance in machining and quality control. With a center distance between rollers maintained within 0.003 mm, it provides exceptional squareness, flatness, and parallelism. Ideal for workshops and laboratories, this sine bar is essential for precise angle measurements. Buy online today or contact us for more details.
