Range | Step of 0.020(Range 1.02 to 4.00 mm): 150 pins, Step of 0.05(Range 7.05 to 12.00 mm): 100 pins, Step of 0.01(Range13.01 to 14 mm): 100 pins, Loose Pins (Range 1.51 to 7.00 mm), Step of 0.020(Range 4.02 to 7.00 mm): 150 pins, Step of 0.01(Range 0.50 to1.00mm): 51 pins, Step of 0.05(Range 12.05to 16.00 mm): 80 pins, Step of 0.01(Range 14.01 to 15.00 mm): 100 pins, Loose Pins (Range 7.01 to 12.00 mm), Step of 0.020(Range 7.02 to 10.00 mm): 150 pins, Step of 0.01(Range 1.01 to 2.50 mm): 150 pins, Step of 0.05(Range 16.05 to 18.00 mm): 40 pins, Step of 0.01(Range 15.01 to 16.00 mm): 100 pins, Loose Pins (Range 12.01 to 15.00 mm), Step of 0.020(Range 10.02 to 12.00 mm): 100 pins, Step of 0.01(Range 2.51 to 4.00 mm): 150 pins, Step of 0.05(Range 18.05 to 20.00 mm): 40 pins, Step of 0.01(Range 16.01 to 16.75 mm): 75 pins, Loose Pins (Range 15.01 to 18.00 mm), Step of 0.020(Range 12.02 to 14.00 mm): 100 pins, Step of 0.01(Range 4.01 to 5.50 mm): 150 pins, Step of 0.10(Range 0.50 to 12.00 mm): 116 pins, Step of 0.01(Range 16.76 to 17.5 mm): 75 pins, Loose Pins (Range 18.01 to 20.00 mm), Step of 0.020(Range 14.02 to 16.00 mm): 100 pins, Step of 0.01(Range 5.51 to 7.00 mm): 150 pins, Step of 0.10(Range 12.10 to 20.00 mm): 80 pins, Step of 0.01(Range 17.51 to 18.25 mm): 75 pins, Step of 0.020(Range 16.02 to 17.50 mm): 75 pins, Step of 0.01(Range 7.01 to 8.5 mm): 150 pins, Loose Pins (Range 0.10 to 0.20 mm), Step of 0.01(Range 18.26 to 19 mm): 75 pins, Step of 0.020(Range 17.52 to 19.00 mm): 75 pins, Step of 0.01(Range 8.51 to 10.00 mm): 150 pins, Loose Pins (Range 0.20 to 0.30 mm), Step of 0.01(Range 19.01 to 19.50 mm): 50 pins, Step of 0.020(Range19.02 to 20.00 mm): 50 pins, Step of 0.01(Range 10.00 to 11.00 mm): 100 pins, Loose Pins (Range 0.31 to 0.40 mm), Step of 0.01(Range 19.51 to 20.00 mm): 50 pins, Step of 0.05(Range 0.50 to 2.00 mm): 31 pins, Step of 0.01(Range11.00 to 12.00 mm): 100 pins, Loose Pins (Range 0.41 to 0.49 mm), Step of 0.020(Range 0.50 to 1.00 mm): 26 pins, Step of 0.05(Range 2.05 to 7.00 mm): 100 pins, Step of 0.01(Range12.01 to 13 mm): 100 pins, Loose Pins (Range 0.50 to 1.50 mm) |
---|---|
Brands | Yuzuki |
Yuzuki® Pin Gauge Set
Categories: Gauge/Indicator/Magnetic stands, Gauges
Tags: LOOSE PINS, PG010T020, PG020T030, PG031T040, PG041T049, PG050T0150, PG1201T01500, PG1501T01800, PG151T0700, PG1801T02000, PG701T01200, PGS001050100, PGS00110001100, PGS001101250, PGS00111001200, PGS00112011300, PGS00113011400, PGS00114011500, PGS00115011600, PGS00116011675, PGS00116761750, PGS00117511825, PGS00118261900, PGS00119011950, PGS00119512000, PGS001251400, PGS001401550, PGS001551700, PGS001701850, PGS0018511000, PGS002050100, PGS00210021200, PGS002102400, PGS00212021400, PGS00214021600, PGS00216021750, PGS00217521900, PGS00219022000, PGS002403700, PGS002702100, PGS005050200, PGS00512051600, PGS00516051800, PGS00518052000, PGS005205700, PGS0057051200, PGS0100501200, PGS01012102000, Pin Gauge Set, Pin Set
Product Features
Quotation Process:
Kindly specify the required range and step limit, and we will provide a tailored quotation for your needs.

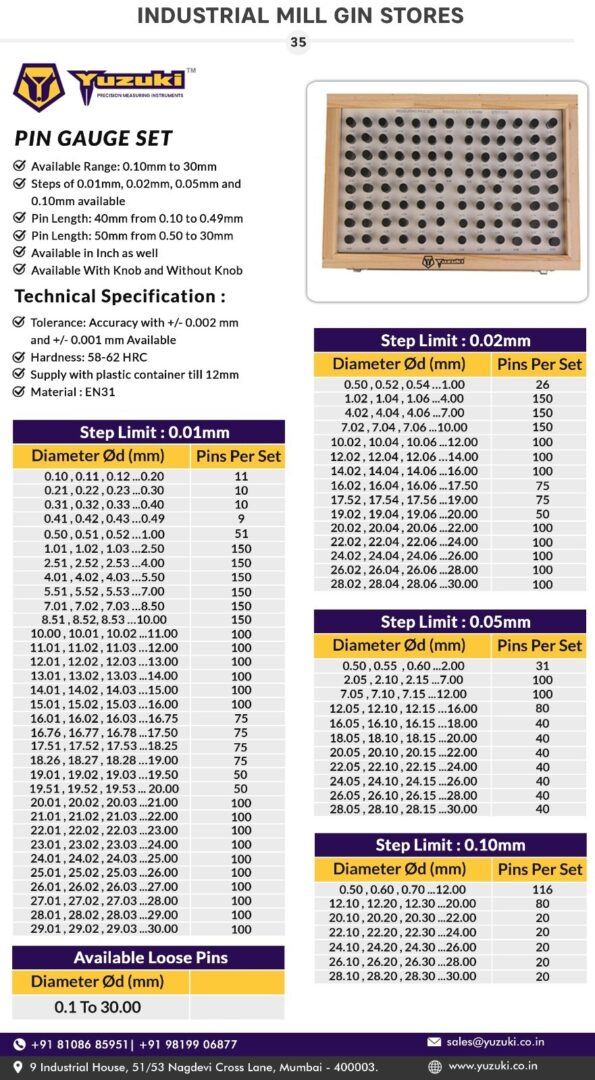

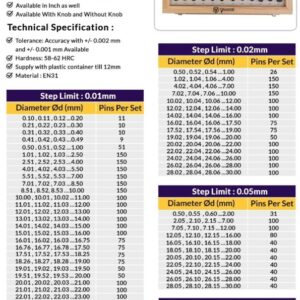

Product Features for Pin Gauge Set :
- Material: Made from EN31 for durability and precision.
- Range: 0.10mm to 30.00mm.
- Step Sizes Available: 0.01mm, 0.02mm, 0.05mm, and 0.10mm.
- Pin Lengths:
- 40mm for 0.10mm to 0.49mm.
- 50mm for 0.50mm to 30.00mm.
- Tolerance Options: Available with accuracies of ±0.002mm and ±0.001mm.
- Hardness: 58-62 HRC for long-lasting performance.
- Packaging Options:

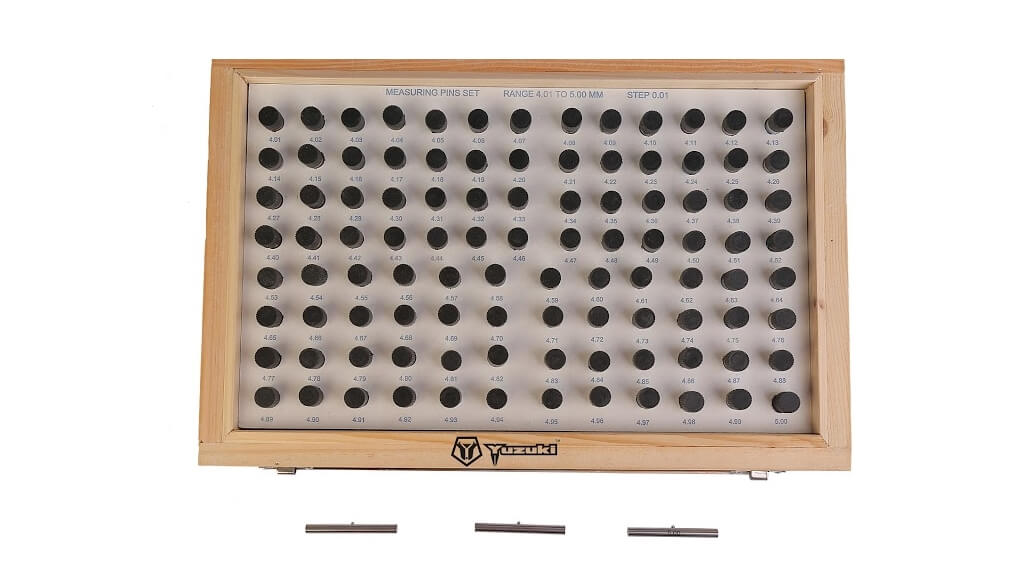

- Polished wooden box with individual calibration certificates for each pin.
- Plastic container packaging available for pins up to 12mm.
- Design Variants: Available with or without knobs to suit specific requirements.
- Imperial Units: Also available in inch measurements.
- Custom Solutions: Individual pins can be provided based on your needs.
Achieve precision with the Yuzuki® Pin Gauge Set, designed for accurate measurements and inspections. Ideal for manufacturing, engineering, and quality control, it ensures reliable results for verifying hole diameters and tolerance checks. Precision-machined for durability, each gauge guarantees consistent accuracy. Compact in a sturdy case, it’s perfect for workshops and on-site use. Elevate your standards today!
