| Range | 0-25mm ( Heavy Duty), 0-25mm ( Economy Model), 25-50mm (Heavy Duty), 25-50mm, 50-75mm, 50-75mm (Heavy Duty), 75-100mm, 75-100mm ( Heavy Duty), 100-125mm, 100-125mm ( Heavy Duty), 125-150mm (Heavy Duty), 125-150mm, 150-175mm (Heavy Duty), 175-200mm (Heavy Duty), 200-225mm (Heavy Duty), 225-250mm (Heavy Duty), 250-275mm (Heavy Duty), 275-300mm (Heavy Duty) |
|---|---|
| Brands | Baker, Mitutoyo, Yuzuki |

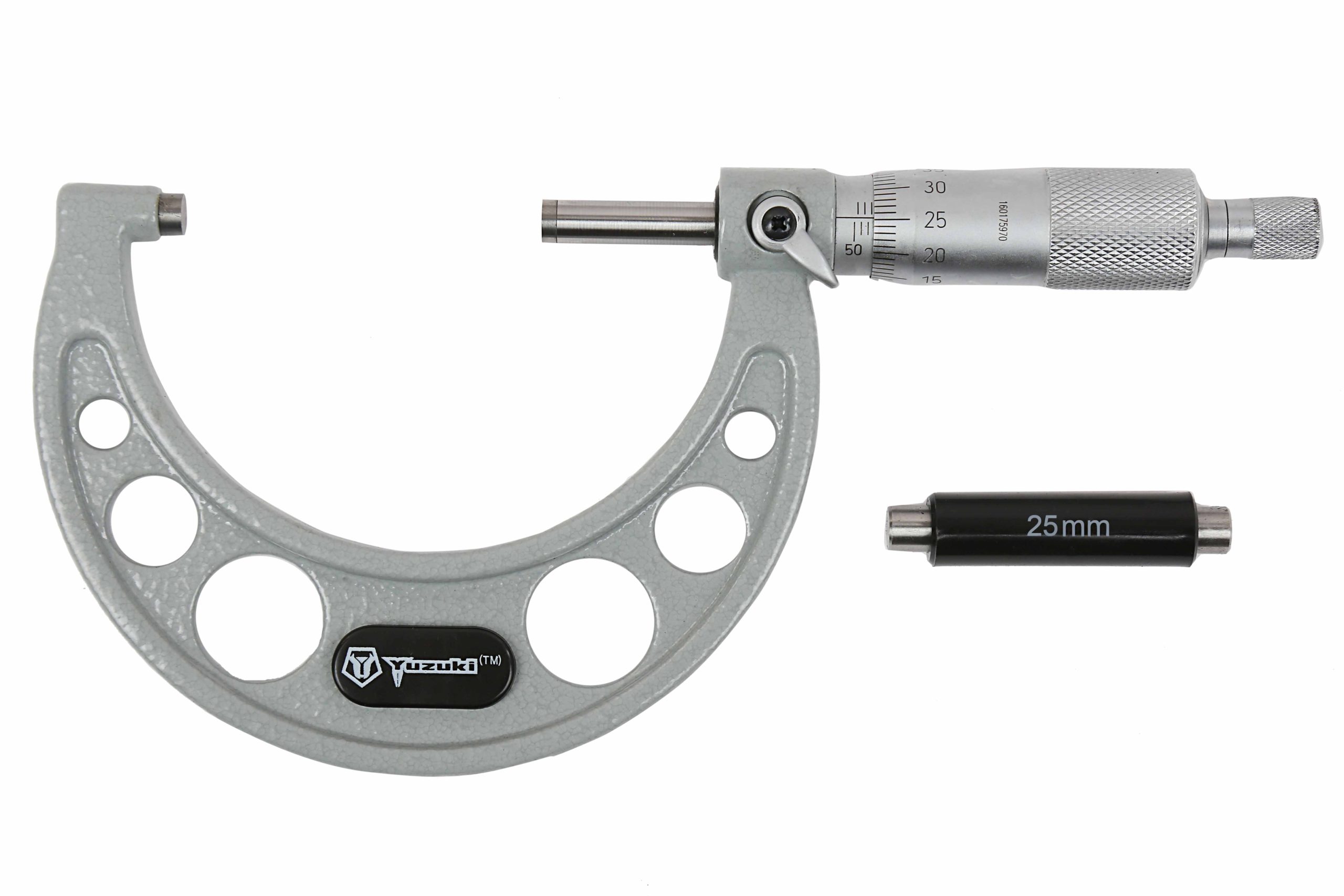

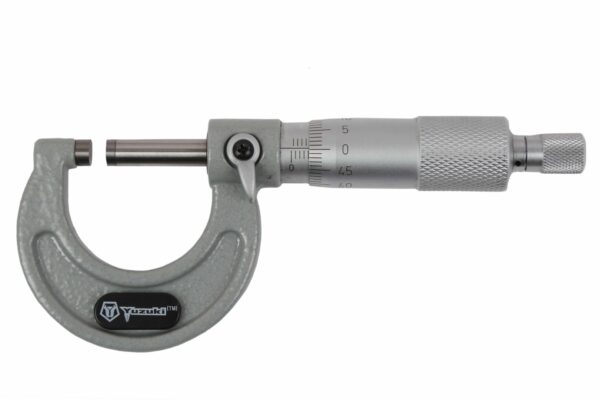

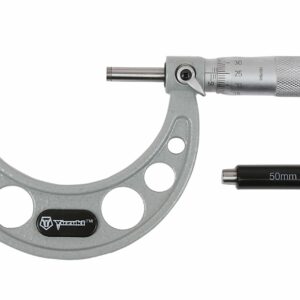

Outside Micrometer (Heavy Duty)
₹1,359 – ₹6,561
Product Features
- Carbide Measuring Faces.
- Painted Frame
- Resolution 0.01mm ( Metric)
- Setting Rod Provided
- Single Ball/ Double Ball options Available on all sizes. Prices on Request
Download Catalog

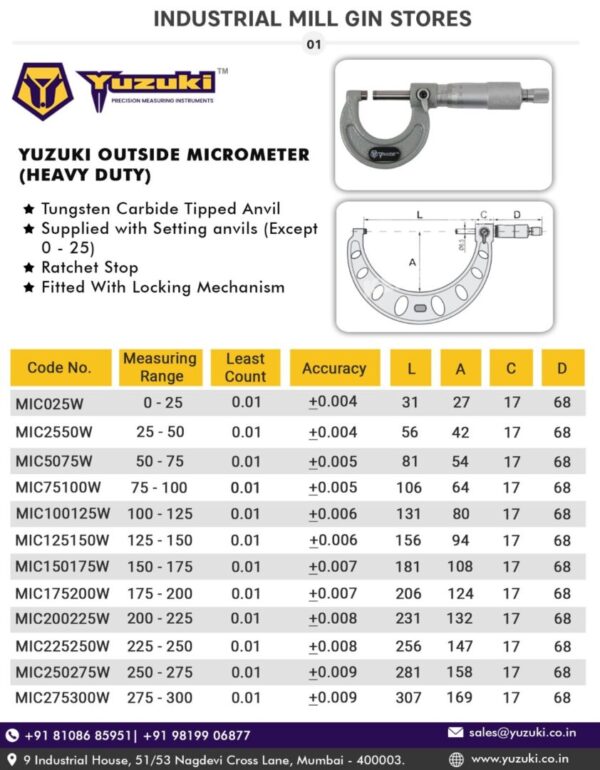

Click here to view the Catalog for Outside Micrometer (Heavy Duty)
View Catalog
Access the Complete Collection Catalog from YUZUKI®
View Complete Catalog
Product Details
The Outside Heavy Duty Micrometer by Yuzuki® is a robust, precision measuring instrument specifically engineered to handle demanding industrial environments. Designed for measuring external dimensions with exceptional accuracy, this micrometer is built with reinforced materials to withstand wear, impact, and heavy use. Its high-torque frame and durable construction make it ideal for professionals requiring precise measurements on larger, heavier components in industries like manufacturing, automotive, and metalworking. Yuzuki’s Outside Heavy Duty Micrometer combines ruggedness with precision, making it a top choice for tasks where reliability is paramount.
| Sr. | Code | Range Available |
|---|---|---|
| 1 | MIC025W | 0 – 25 mm |
| 2 | MIC2550W | 25 – 50 mm |
| 3 | MIC5075W | 50 – 75 mm |
| 4 | MIC75100W | 75 – 100 mm |
| 5 | MIC100125W | 100 – 125 mm |
| 6 | MIC125150W | 125 – 150 mm |
| 7 | MIC150175W | 150 – 175 mm |
| 8 | MIC175200W | 175 – 200 mm |
| 9 | MIC200225W | 200 – 225 mm |
| 10 | MIC225250W | 225 – 250 mm |
| 11 | MIC250275W | 250 – 275 mm |
| 12 | MIC275300W | 275 – 300 mm |
Key Features and Benefits
- Heavy-Duty Construction: Crafted with high-strength materials, this micrometer is built to handle high-pressure measurements, reducing wear even in challenging conditions.
- Precision Measurements: Provides accurate readings for external measurements with a fine resolution, ensuring dependability for critical tasks.
- Ergonomic Design: The micrometer’s large, comfortable grip and smooth rotation offer ease of use, even during extended periods.
- High-Visibility Scale: Features a large, easy-to-read display and clear graduation marks, which reduce errors and enhance reading accuracy.
- Protective Coatings: The spindle and anvil surfaces are coated with protective layers to resist corrosion, ensuring long-lasting performance.
- Adjustable Ratchet Stop: Enables precise, controlled pressure, preventing over-tightening and maintaining consistent measurement accuracy.
- Built-In Lock Nut: Locks the spindle in place once measurements are taken, ensuring stability and security in readings.
Applications
The Outside Heavy Duty Micrometer is versatile and suitable for a range of applications, including:
- Manufacturing and Production: Used in assembly lines for consistent measurement of large components, particularly in metalworking and machinery parts production.
- Automotive Industry: Measures engine parts, axles, and other large automotive components where precision is essential.
- Aerospace and Defense: Ensures accuracy and durability in measuring critical aerospace and defense components, built to withstand varying conditions.
- Metal Fabrication: Ideal for gauging large metal pieces and assemblies where ordinary micrometers may fall short in durability.
- Industrial Quality Control: Essential for maintaining high standards in industrial quality checks, especially in applications where accuracy and durability are non-negotiable.
This Outside Heavy Duty Micrometer from Yuzuki® is engineered to enhance productivity and quality control for professionals needing robust measurement solutions. Whether for high-precision manufacturing or heavy-duty applications, this micrometer stands as a reliable, long-lasting instrument for any industrial workspace.
How to Use
The Outside Heavy Duty Micrometer is an essential tool for accurate measurement of external dimensions on larger or tough materials. Built to withstand rigorous use, it’s widely utilized in industries like manufacturing, metalworking, and automotive. Here’s a step-by-step guide on how to effectively use this precision instrument.
Step 1: Prepare the Micrometer
- Clean the Surfaces: Ensure both the object to be measured and the micrometer’s spindle and anvil surfaces are clean and free from dust or debris. This helps prevent measurement inaccuracies.
- Zero the Micrometer: If needed, calibrate the micrometer by closing it completely and ensuring the reading is zero. Adjust if necessary, according to the manual.
Step 2: Secure the Object
- Position the Object: Hold the object securely in a stable position. Avoid holding it directly in hand to minimize movement during measurement, especially for heavier items.
Step 3: Open the Micrometer
- Turn the Thimble: Gently turn the thimble to open the micrometer jaws, allowing enough space for the object to fit between the anvil and spindle.
- Insert the Object: Slide the object between the measuring surfaces (anvil and spindle).
Step 4: Take the Measurement
- Adjust the Thimble: Slowly turn the thimble until the anvil and spindle are in firm contact with the object’s surface. Use the ratchet stop to control pressure and avoid over-tightening, which may distort readings.
- Read the Scale: Once stable, read the measurements from the micrometer scale. The micrometer’s clear graduation markings and large display aid accuracy, even in heavy-duty applications.
Step 5: Lock and Note the Measurement
- Lock the Spindle: Use the built-in lock nut to hold the spindle in place once you’ve achieved the correct measurement. This ensures a steady reading.
- Record the Measurement: Carefully record the measurement as per your requirement, using both the main scale and the additional vernier or digital scale if applicable.
Additional Tips for Accurate Use
- Apply Consistent Pressure: Use the ratchet stop to avoid excessive force, ensuring consistent pressure for each measurement.
- Handle with Care: Though heavy-duty, the micrometer should be handled carefully and stored properly to maintain calibration.
- Regular Calibration: Periodically check and recalibrate the micrometer to maintain accuracy, especially after prolonged or intensive use.
The Outside Heavy Duty Micrometer is engineered for precise and dependable measurements even in challenging industrial environments. With these simple steps, users can achieve reliable measurements, enhancing productivity and ensuring quality in various applications.
