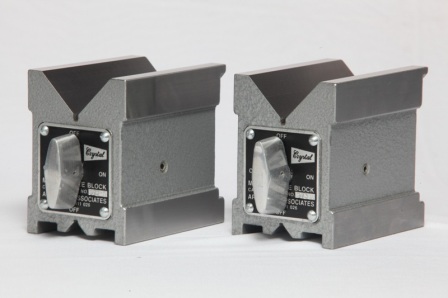

CRYSTAL Magnetic V Blocks

Features for CRYSTAL Magnetic V Blocks AA180:

• Accuracy: The squareness, flatness, and parallelism of the ‘V’ Blocks are maintained within 5 microns for precise operations.
• Applications: “Crystal” Brand Magnetic ‘V’ Blocks are essential tools for Quality Control, Tool Rooms, and Standard Rooms. They feature high magnetic pull, making them suitable for drilling, grinding (wet or dry), and light milling work.
• Design Features: The ‘V’ Block includes three magnetic surfaces:
  • Top and Bottom with a 90° ‘V’ angle
  • End Surface opposite the switch
    All magnetic surfaces and the two sides are meticulously ground.
• Accuracy Levels:
  • Flatness, parallelism, and squareness:
    • Within 0.005 mm for 2″, 3″, 4″, and 6″ ‘V’ Blocks
    • Within 0.010 mm for 8″ ‘V’ Blocks
• Magnetic Functionality: When turned “ON,” all three magnetic surfaces are simultaneously activated. The permanent magnet holds the workpiece securely in the ‘V’ and firmly attaches the block to a magnetically conductive surface. The magnetic pull remains constant, ensuring durability and reliability even after prolonged use. The system is shielded against moisture penetration, protecting it from coolants or other fluids.
• Hardened Magnetic ‘V’ Block:
  Similar to the Standard Magnetic ‘V’ Block, but equipped with hardened steel plates on the main ‘V’ angle and bottom holding surface, providing extra wear resistance.
• Markings:
  • S: Soft
  • H: Hardened

These ‘V’ Blocks are indispensable for precision tasks, ensuring reliability and long-lasting performance.

The CRYSTAL Magnetic V Blocks are essential tools for quality control, tool rooms, and standard rooms. With a high magnetic pull, they provide secure holding for drilling, grinding, and light milling work. Featuring hardened steel surfaces and a precise 90° V angle, they ensure accuracy for squareness, flatness, and parallelism. Ideal for professionals, these blocks offer durability and reliable performance. Buy online or contact us for more details.
