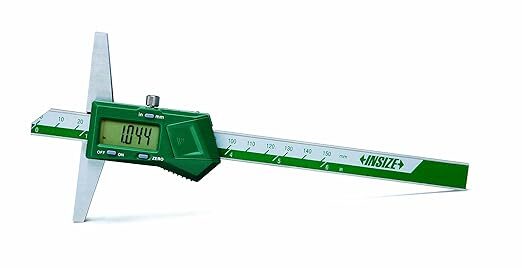

INSIZE Digital Depth Gauges (Standard Type) Series 1141
Product Features
Features for INSIZE Digital Depth Gauges (Standard Type) Series 1141 :
- Model Number/Code – 1141
- Material: Made of stainless steel for durability.
- Buttons: Zero, On/Off, mm/inch conversion
- Power Management:
- Automatic power-off feature
- Move the digital unit to turn on power
- Battery: CR2032
- Standard Compliance: Meets DIN 862, except for 0-500mm/0-20″, 0-1000mm/0-40″, 0-1500mm/0-60″
- Water Resistance: Non-waterproof
Product Details

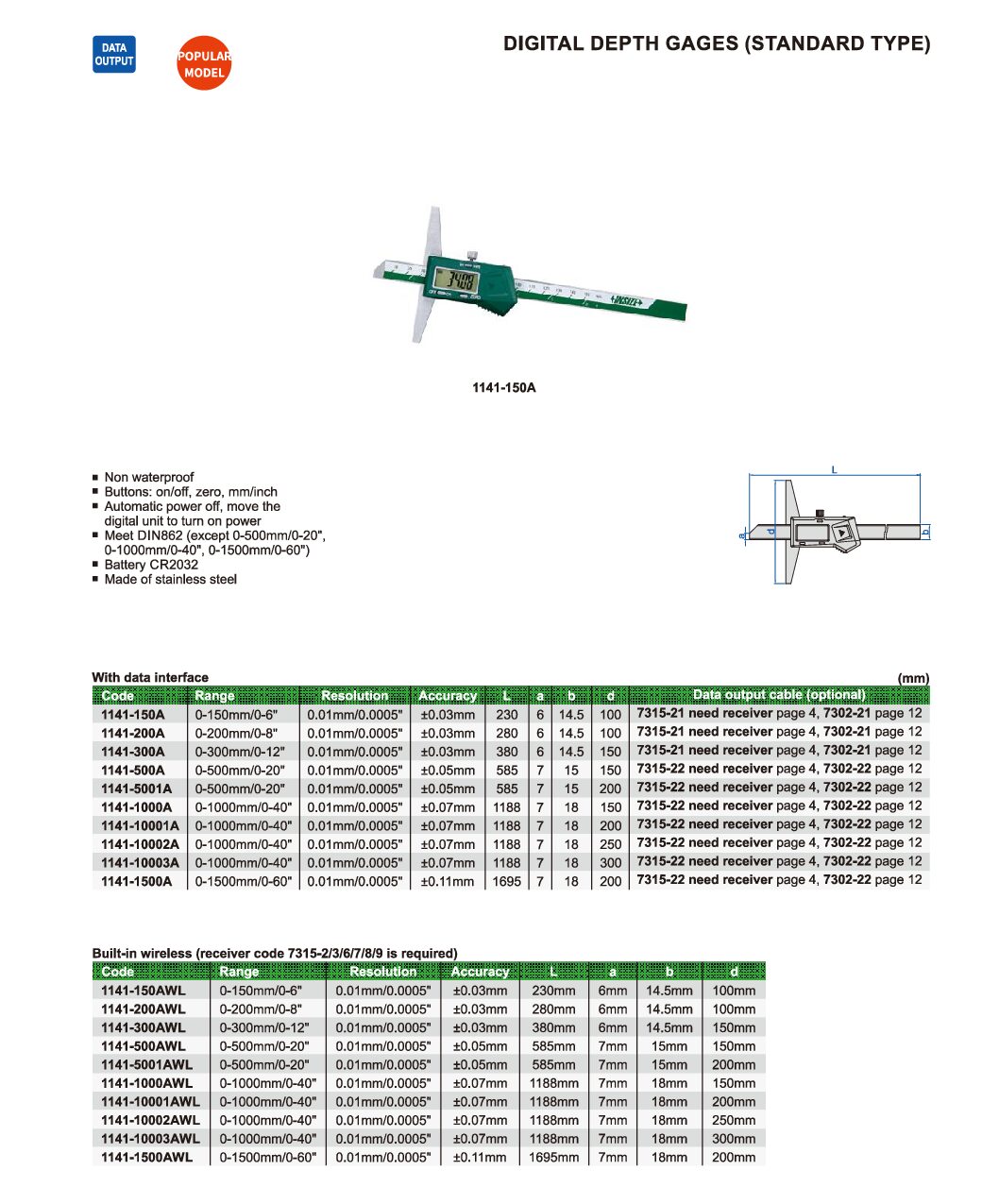

Ranges and Specifications for INSIZE Digital Depth Gauges (Standard Type) Series 1141 :
| Sr. | Code | Range Available | Resolution |
|---|---|---|---|
| 1 | 1141-150A | 0-150 mm / 0-6″ | 0.01mm/0.0005″ |
| 2 | 1141-200A | 0-200 mm / 0-8″ | 0.01mm/0.0005″ |
| 3 | 1141-300A | 0-300 mm / 0-12″ | 0.01mm/0.0005″ |
| 4 | 1141-500A | 0-500 mm / 0-20″ | 0.01mm/0.0005″ |
| 5 | 1141-5001A | 0-500 mm / 0-20″ | 0.01mm/0.0005″ |
| 6 | 1141-1000A | 0-1000 mm / 0-40″ | 0.01mm/0.0005″ |
| 7 | 1141-10001A | 0-1000 mm / 0-40″ | 0.01mm/0.0005″ |
| 8 | 1141-10002A | 0-1000 mm / 0-40″ | 0.01mm/0.0005″ |
| 9 | 1141-10003A | 0-1000 mm / 0-40″ | 0.01mm/0.0005″ |
