| Brands | INSIZE |
|---|
INSIZE Bore Gauge with Indicator. Series 2322 & 2122
Product Features
Features for INSIZE Bore Gauge with Indicator. Series 2322 & 2122 :

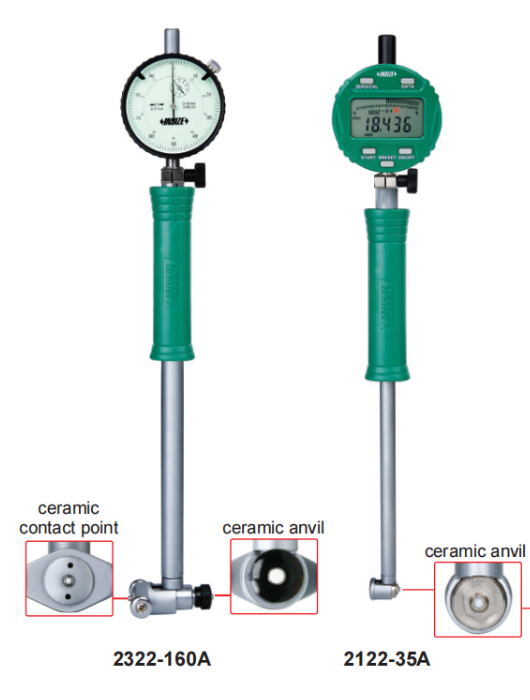

- Model Name/Number – The bore gauge is available in two models: 2322 for the bore gauge with a dial indicator and 2122 for the bore gauge with a digital indicator.
- Measuring Range – It offers a wide measuring range from 18-35mm to 250-450mm, making it suitable for various applications.
- Repeatability – Designed for high precision, it provides a repeatability of 0.003mm for consistent and accurate measurements.
- Variations – This bore gauge is available in two variations:
- With Dial Indicator – for traditional analog readings.
- With Digital Indicator – for enhanced accuracy and easy readability.
Product Details

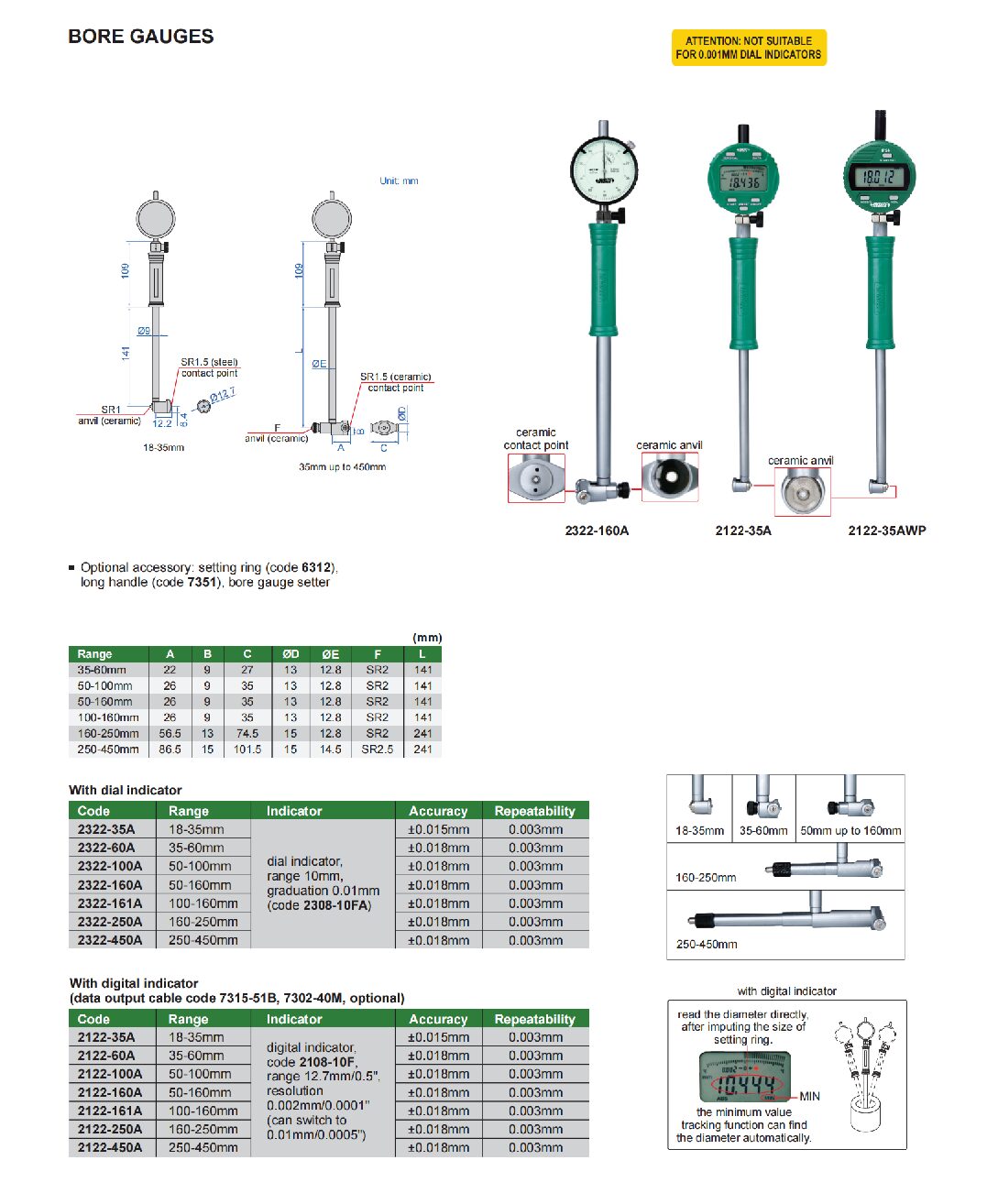

Available ranges and Specifications for INSIZE Bore Gauge with Indicator. Series 2322 & 2122
| Sr. | Code | Range Available |
|---|---|---|
| 1 | 2322-35A | 18-35 mm |
| 2 | 2322-60A | 35-60 mm |
| 3 | 2322-160A | 50-160 mm |
| 4 | 2322-250A | 160-250 mm |
| 5 | 2322-450A | 250-450 mm |
