Range | 0.001-12.7mm, 0.001-25mm, 0.01-12.7mm, 0.01-25mm |
---|---|
Brands | Yuzuki |

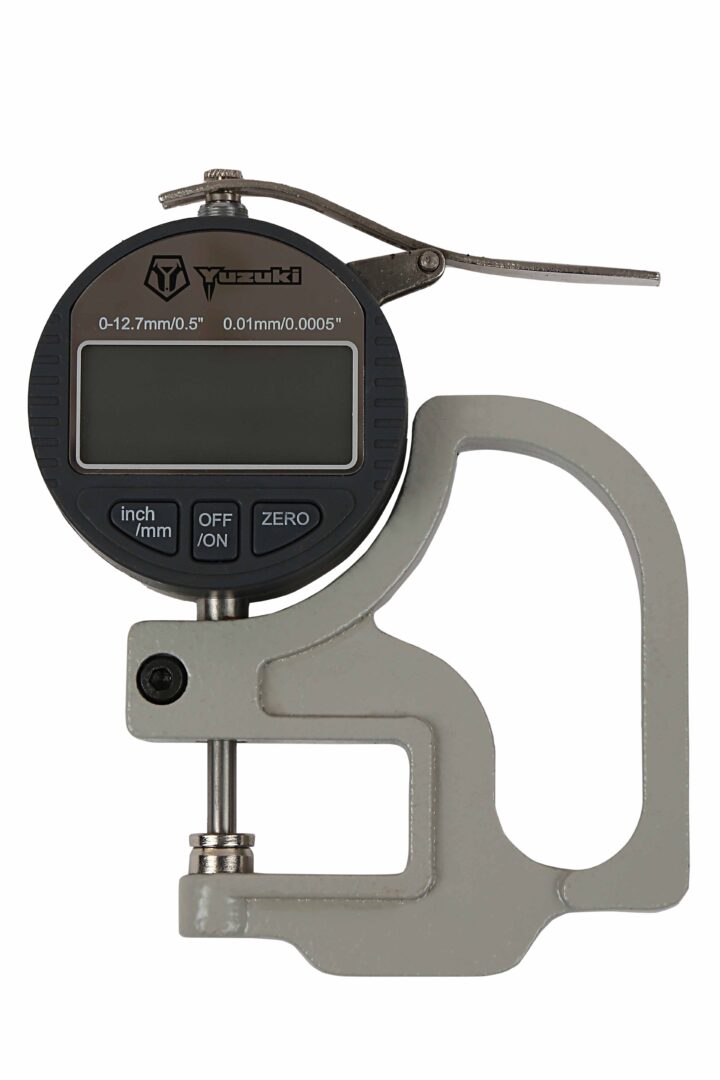

Yuzuki® Digital Thickness Gauge
₹3,578 – ₹8,118
SKU: N/A
Categories: Digital Thickness Gauge, Thickness Gauge
Tags: 0.001x12.7mm, 0.001x25mm, 0.01x12.7mm, 0.01x25mm, Digital Thickness Gauge, DTG12001, DTG1201, DTG25001, DTG2501, Thickness Gauge
Product Features
- Quick Measurement: The Digital Thickness Gauge is designed to quickly measure the thickness of thin products such as paper and felt.
- Anvil Diameter Options: Available with anvil sizes of 10mm, 20mm, 25mm, and 30mm to suit various measurement needs.

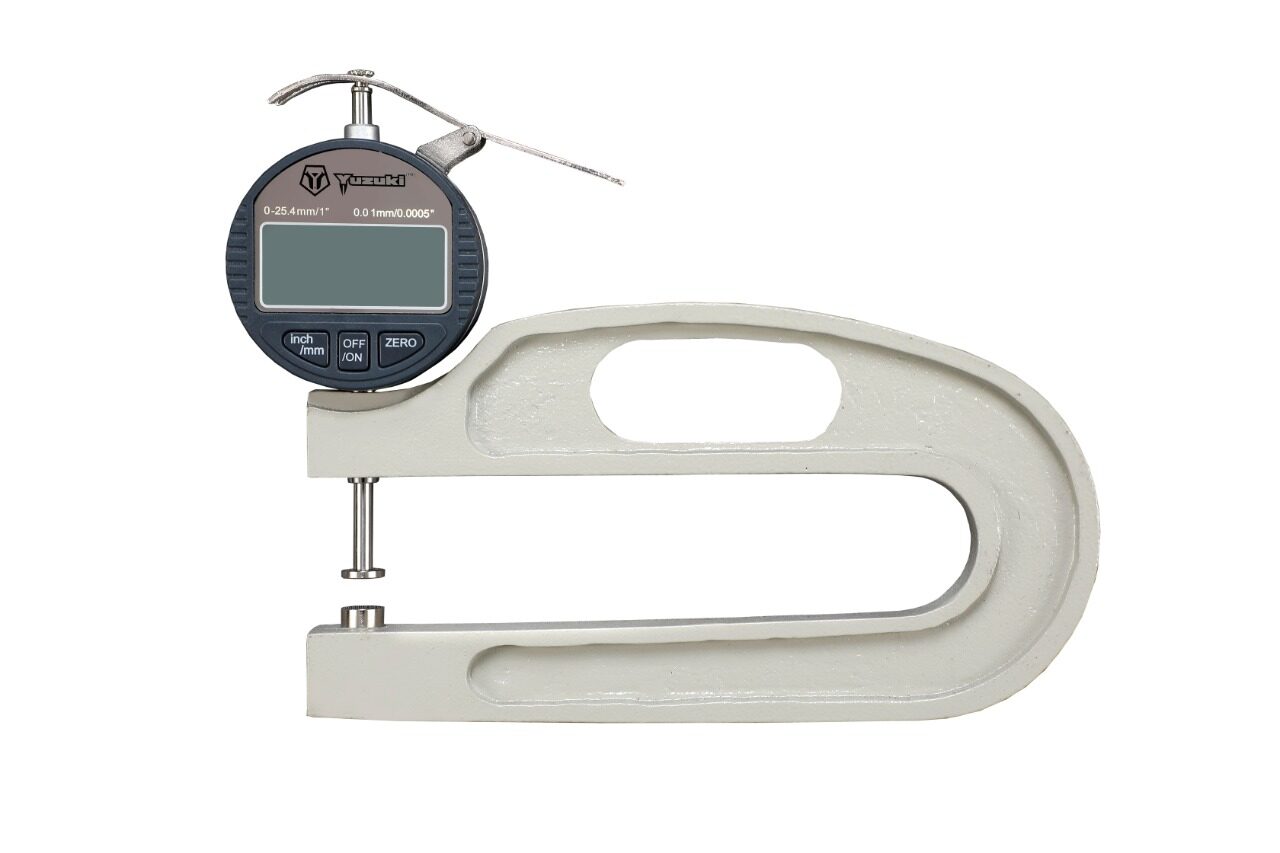

- Deep Throat Thickness Gauge: Made to order. Prices available upon request for specialized measurements.
- Bigger Diameter Anvil: Also available on request for measuring larger diameter materials.
- MM/Inch Conversion: Supports easy conversion between millimeters and inches for flexibility.
- Response Speed: Fast response speed of ≤ 5 ms for efficient operation.
- LCD Display: Clear and easy-to-read LCD screen with a 20mm display size.
- Low Power Consumption: Designed for low power usage, ensuring extended battery life.
- Long Battery Life: Provides long-lasting performance for extended measurement sessions.
Achieve precise and consistent results with our Digital Thickness Gauge, designed for professional use in machining, engineering, and quality assurance. Featuring a user-friendly digital display and robust construction, it ensures accurate thickness measurements in rigorous environments. Buy this precision gauge online now or contact us for further details!

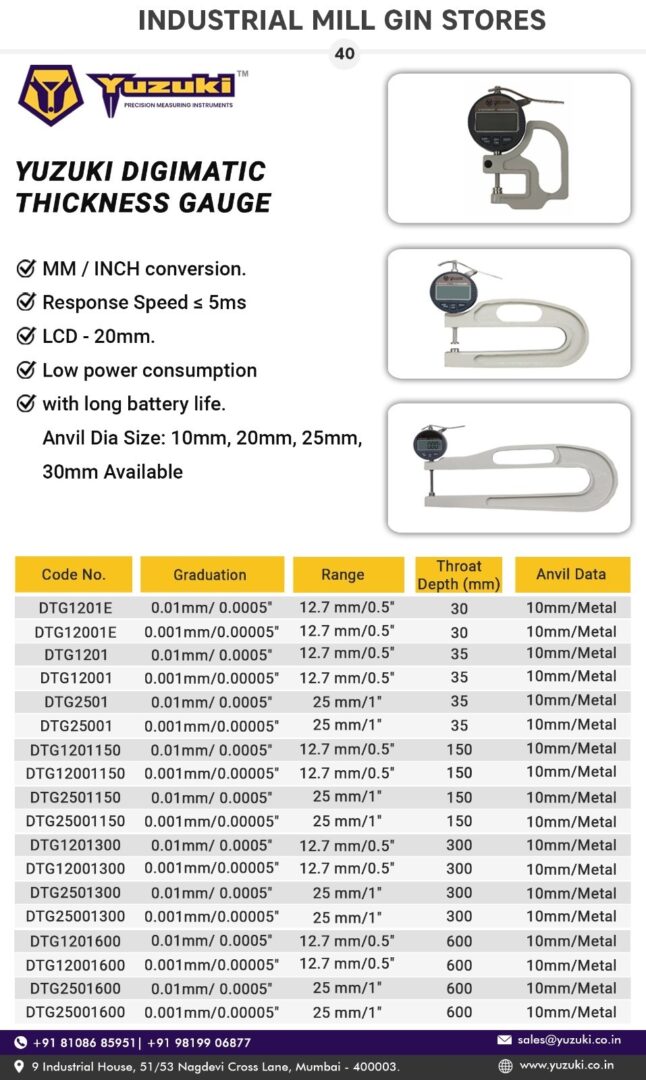

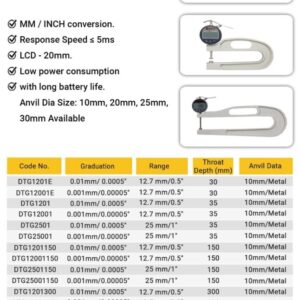

Download Catalog
Click here to view the Catalog for YUZUKI® Digital Thickness Gauge
View Catalog
Access the Complete Collection Catalog from YUZUKI®
View Complete Catalog
View Catalog
Access the Complete Collection Catalog from YUZUKI®
View Complete Catalog
Product Details
Code | Resolution | L.C. | Throat Depth |
DTG1201 | 12.7mm | 0.01mm | 35mm |
DTG12001 | 12.7mm | 0.001mm | 35mm |
DTG2501 | 25.4mm | 0.01mm | 35mm |
DTG25001 | 25.4mm | 0.001mm | 35mm |
DTG1201150 | 12.7mm | 0.01mm | 150mm |
DTG1201300 | 12.7mm | 0.01mm | 300mm |
DTG12001150 | 12.7mm | 0.001mm | 150mm |
DTG12001300 | 12.7mm | 0.001mm | 300mm |
DTG2501150 | 25.4mm | 0.01mm | 150mm |
DTG2501300 | 25.4mm | 0.01mm | 300mm |
DTG25001150 | 25.4mm | 0.001mm | 150mm |
DTG25001300 | 25.4mm | 0.001mm | 300mm |
Related products
-
Yuzuki® P Type Dial Caliper Gauge (Thickness Gauge)
₹2,200 Select options This product has multiple variants. The options may be chosen on the product page -
Yuzuki® P Type Digital Caliper Gauge (Thickness Gauge)
₹2,500 Select options This product has multiple variants. The options may be chosen on the product page -

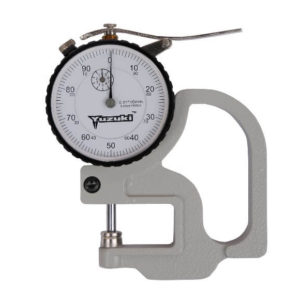

Yuzuki® Dial Thickness Gauge
