| Range | Shore A, Shore D, Shore A Eco, Shore D Eco |
|---|---|
| Brands | Yuzuki |
| Product Description | Ensure accurate rubber hardness measurements with our Digital Rubber Hardness Tester Shore (Durometer). Designed for precision and reliability, this innovative tool is perfect for assessing the hardness of various rubber materials. Whether you're testing tires, gaskets, or other rubber components, our durometer provides precise readings with digital accuracy. The compact and portable design makes it convenient for on-site inspections and laboratory use. With its user-friendly interface and digital display, obtaining accurate hardness measurements has never been easier. Elevate your testing standards with our Digital Rubber Hardness Tester Shore (Durometer), ensuring consistent and reliable results every time. |

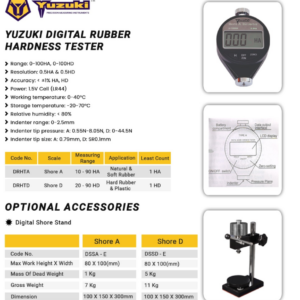

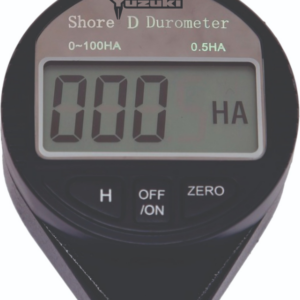

Digital Rubber Hardness Tester Shore (Durometer)
₹3,724 – ₹3,800
Product Features
- Measuring Range: 0-100 HA & 0-100 HD, offering a wide range of hardness measurements.
- Resolution: 0.5 HA & 0.5 HD for precise and detailed readings.
- Accuracy: < ±1% HA, HD, ensuring reliable and consistent results.
- Indenter Range: 0-2.5mm for versatile testing applications.
- Indenter Tip Pressure:
- A Type: 0.55N-8.05N
- D Type: 0-44.5N
- Indenter Tip Size:
- A Type: 0.79mm
- D Type: SR0.1mm for accurate and defined penetration.
- Power Supply: 1.5V Cell (LR44) for reliable and long-lasting performance.
- Working Temperature: Operates within 0-40°C for standard testing conditions.
- Storage Temperature: Safe for storage between -20°C to 70°C for environmental stability.
- Relative Humidity: <80% for optimal operation in various environments.
- Optional Accessory: Digital Shore Stand available for added convenience.
- Hardness Measurement Principle: The principle used to measure hardness is based on the resistance force of a pin’s penetration into the test material under a known spring load. The penetration (max. 2.54mm / 0.1in.) is then converted to a hardness reading on a 100-unit scale.
- Scale Recommendations: According to ASTM D2240 Standard, readings below 10 and above 90 are considered unreliable and should be discarded. Therefore, it is important to select the appropriate scale that will provide results between 10-90 units.
