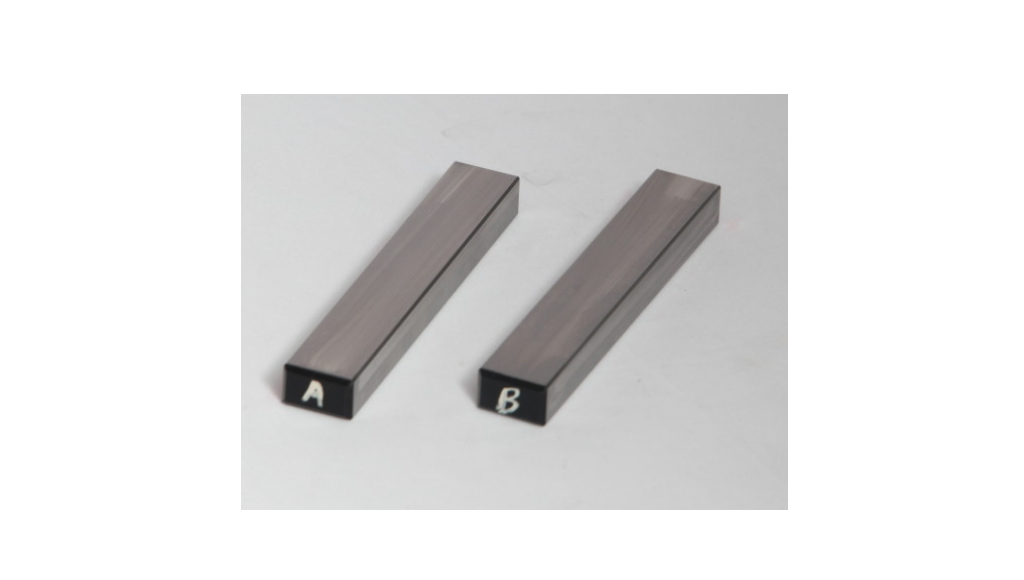

CRYSTAL Parallel Blocks

Key Features for Crystal Parallel Blocks – Series AA-120:

• Series AA-120:
  High-precision ground blocks designed for professional and industrial applications.
• Premium Quality Material:
  Made from special quality steel, ensuring durability and reliability.
• Hardened and Ground:
  Hardened and ground to 55HRC ± 2HRC, offering exceptional strength and precision.
• Finished on Four Sides:
  Precisely ground and finished on all four sides for versatile use.
• Matched Pairs:
  Carefully ground in matched pairs to ensure consistency and accuracy.
• Dimensional Accuracy:
  Thickness, width, and length are controlled within:
  ±0.1mm for blocks up to 200mm in length.
  ±0.2mm for blocks up to 450mm in length.
  Precision Accuracy for Parallelism & Squareness:
• Accuracy levels:
  ±0.005mm for blocks up to 200mm.
  ±0.010mm for blocks up to 450mm.
• Chamfered Edges:
  All four sides are chamfered for safe handling and better usability.

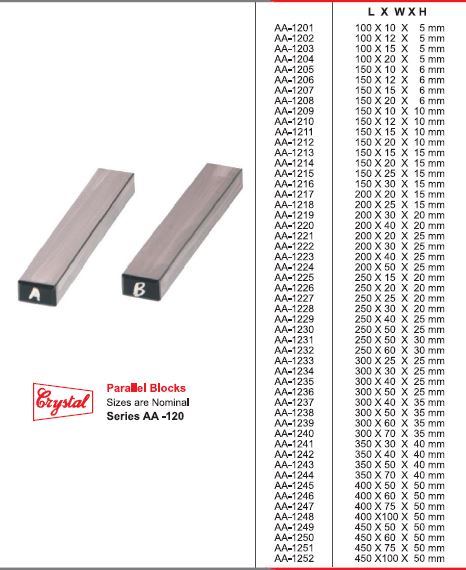

• Available Range:
  Sizes range from 100mm to 450mm. For custom sizes or further details, please request a quote.

Applications:
The Precision Ground Blocks – Series AA-120 are ideal for machining, inspection, and assembly tasks, offering unmatched accuracy and reliability in tool rooms, workshops, and industrial environments.
