| Range | 50-100-30mm(Pair), 50-75-75mm(Pair), 50-100-50mm(Pair), 50-100-25mm(Pair), 60-75-30mm(Pair), 60-100-25mm(Pair), 80-120-25mm(Pair) |
|---|

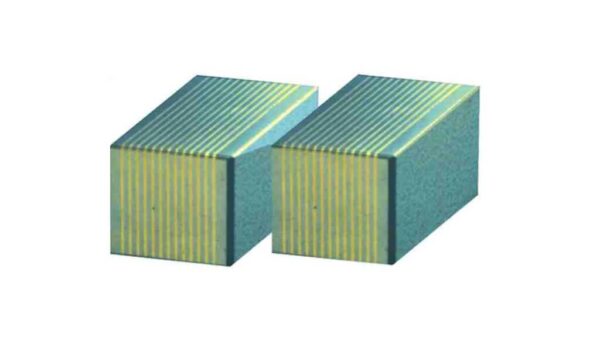

CRYSTAL Magnetic Transfer Blocks
Product Features
Key Features for Crystal Magnetic Transfer Blocks – Series AA155:
- Series AA-155:
High-quality transfer blocks designed for grinding thin and oddly shaped workpieces with precision. - Enhanced Versatility:
Used with magnetic chucks to extend the magnetic flux, enabling effective support for workpieces above the chuck face.
Ideal for grinding and clamping tasks. - No Intrinsic Magnetism:
These transfer blocks do not have their own magnetism, ensuring compatibility with magnetic chucks. - Optimal Usage:
Transfer blocks must be placed with their laminations parallel to the chuck poles for effective operation. - Matched Pairs:
Grounded in matched pairs for consistent and reliable performance. - Specialized Variations Available:
Also available in 90° ‘V’ type for clamping and grinding round jobs with precision.
Applications:
The Crystal Transfer Blocks – Series AA-155 are invaluable tools for extending the capabilities of magnetic chucks in machining and grinding thin or irregularly shaped workpieces. Their precision design ensures reliable performance in professional workshops and tool rooms.
| Sr. No | Cat. No. | Size in mm (L x W x H) |
|---|---|---|
| 1 | AA-1551 | 50 x 100 x 35 |
| 2 | AA-1552 | 60 x 75 x 30 |
| 3 | AA-1553 | 50 x 75 x 75 |
| 4 | AA-1554 | 50 x 100 x 50 |
| 5 | AA-1555 | 80 x 120 x 25 |
| 6 | AA-1556 | 60 x 100 x 25 |
| 7 | AA-1557 | 50 x 100 x 20 |
