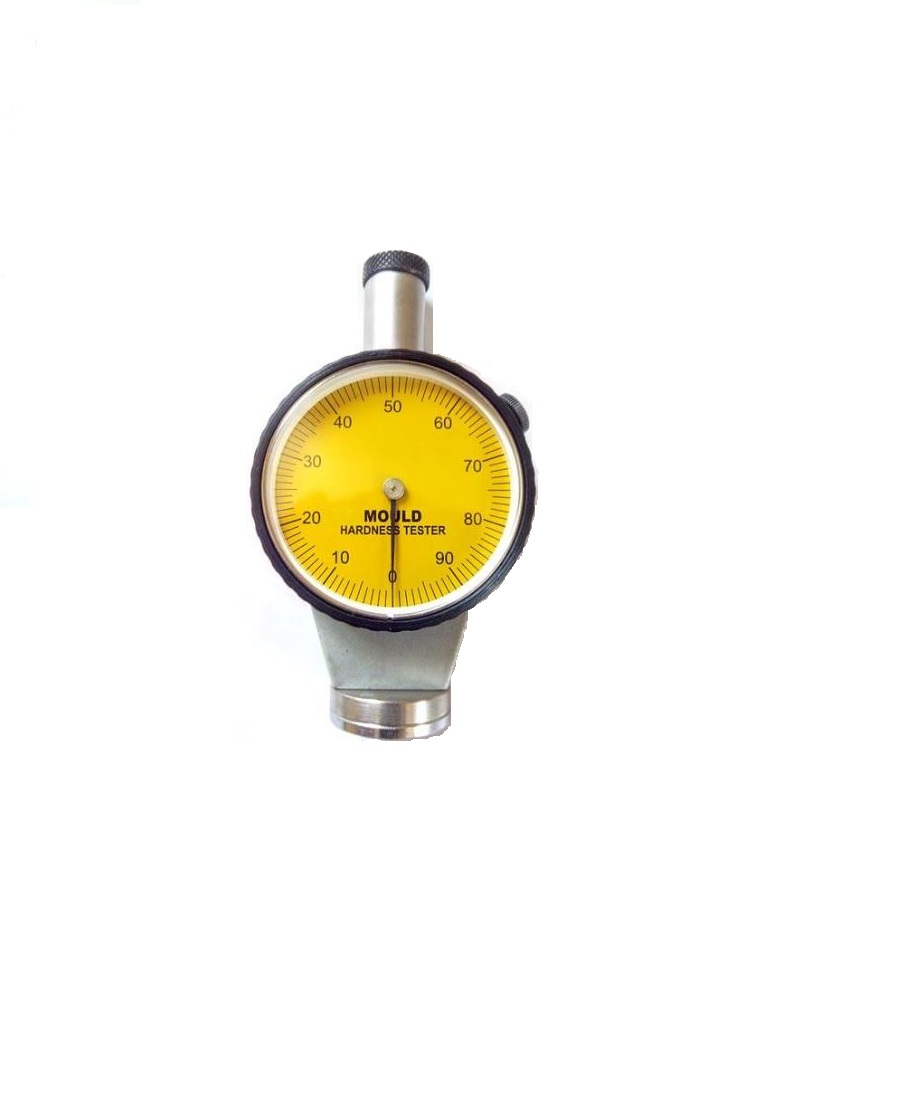

Mould Hardness Tester
₹0
Product Features
Features for Mould Hardness Tester :
- Manufactured to AFS Specifications: The Mould Hardness Tester is designed to measure the surface hardness of green sand molds with precision.
- Quick and Easy Testing: The hardness test is performed in seconds by simply pressing the tester against the mold surface and noting the reading on the dial.
- Spring-Loaded Ball Contact: Equipped with a 1/2 inch (12.7 mm) radius ball contact, loaded with a spring pressure of 980 gms. The softer the mold surface, the greater the penetration in the mold.
- Measurement Range:
- A mold offering no resistance to the contact point reads 0.
- A mold with hardness that prevents penetration reads 100.
- Maximum Reading Stop: Retains the reading for areas tested in blind portions of the mold for easy reference.
Dimensions:
- Height: Approx. 4″ (108 mm)
- Width: Approx. 2″ (57 mm)
- Net Weight: 205 gms
