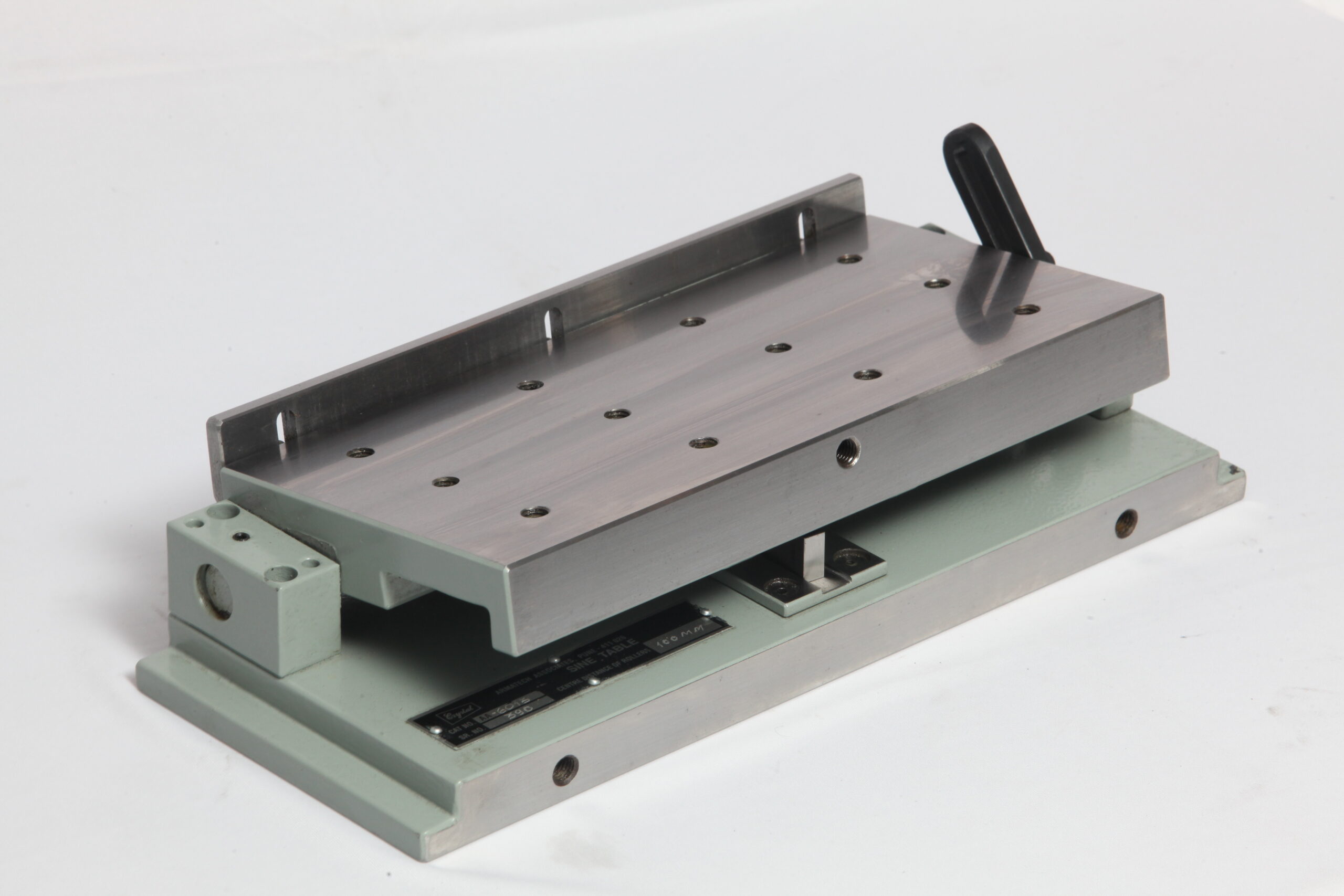

Sine Table

REQUEST FOR QUOTE BELOW

Features :

  • Non-magnetic
  • Sine tables are ideal for precision angle grinding & inspection.
  • The are made from high quality steel & hardened and ground to 55HRC ±2HRC
  • An angle can be set to within ±5 seconds of a degree.
  • Firm hinge clamps reduce possibility of distortions.
  • Flatness 0.005mm per 100mm. Center distance of the roller is within 0.005mm.
  • Tapped holes are provided on the top sides which facilitates clamping.
  • Suitable for angle range from 0-45 degree.
Sr.No Cat No. Size in mm
L x W x H
C.D. of Roller
(mm)
Bottom Plate Length (L1)
1 AA-6011 150 x 120 x 85 70 230
2 AA-6012 250 x 150 x 85 100 330
3 AA-6013 300 x 150 x 85 100 380
4 AA-6014 450 x 150 x 85 100 530
