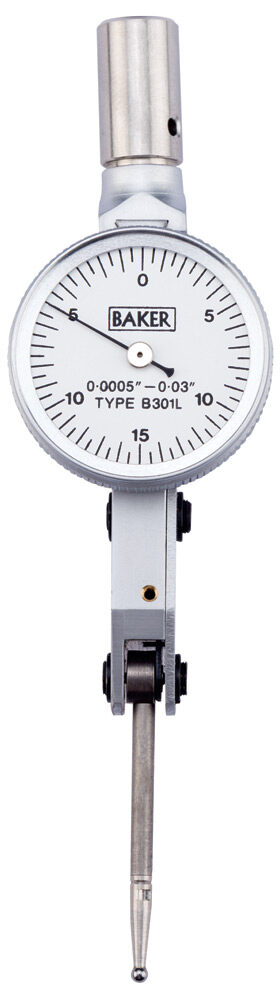

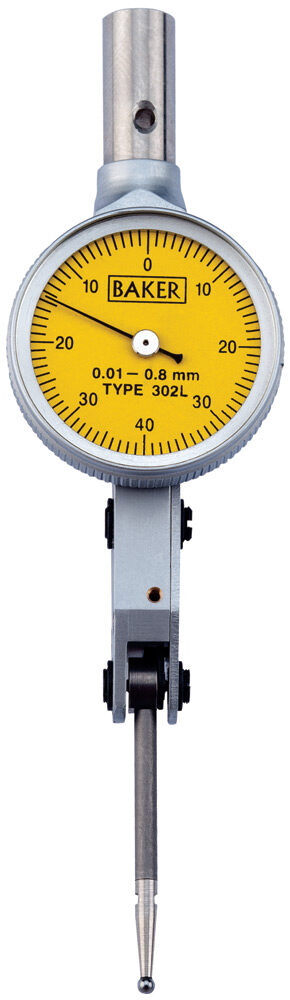

Lever Type Dial Gauge

REQUEST FOR QUOTE BELOW

Features :

  • Specification : IS, DIN, ANSI & JIS.
  • Every gauges carries a Calibration Certificate giving actual values.
  • Auto reversal mechanism.
  • Fitted with jewel and Sswiss miniature ball bearing for smoother operation.
  • Rigid brass body for increased rigidity.
  • Robust and highly sensitive gauge suitable for workshop use.
  • Metric gauges conform to IS 11498 and for the European market to DIN 2270.
  • Inch gauges conform to ASME 889.1.10M
  • Special Dial Gauge for OEMs also manufactured on request.

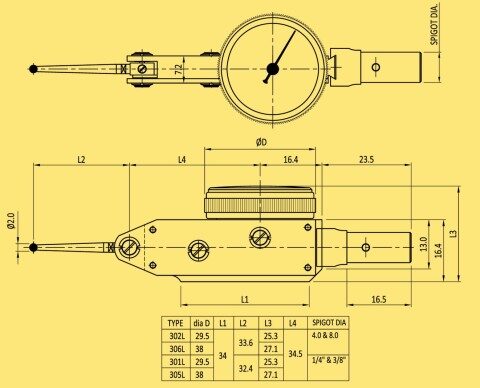

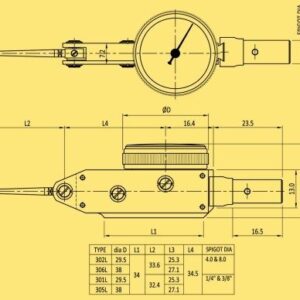

  • Integral dovetail offers flexibility and rigidity for mounting of the gauge.
  • Metric & Inch gauges are supplied with 2 mm tungsten carbide ball stylus and 8 mm spigot assembly as standard supply.
  • No additional accessories are offered when Suffix A is added to the number.
  • Additional 1 mm carbide ball stylus, Height gauge adapter, spanner, universal clamp and 4 mm dovetail spigot assembly offered as additional accessories for gauge where type number is without Suffix A.

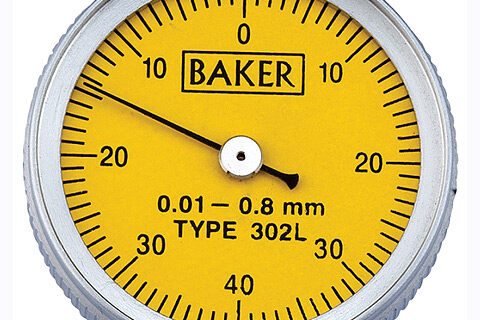

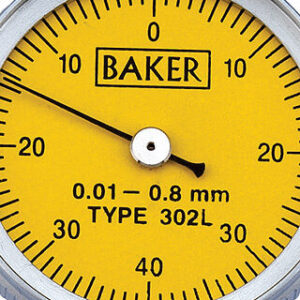

TYPE READING RANGE GRADUATION
302 0.01 mm 0.8 mm 0-40-0
304 0.002 mm 0.2 mm 0-10-0
302A 0.01 mm 0.8 mm 0-40-0
304A 0.002 mm 0.2 mm 0-10-0
