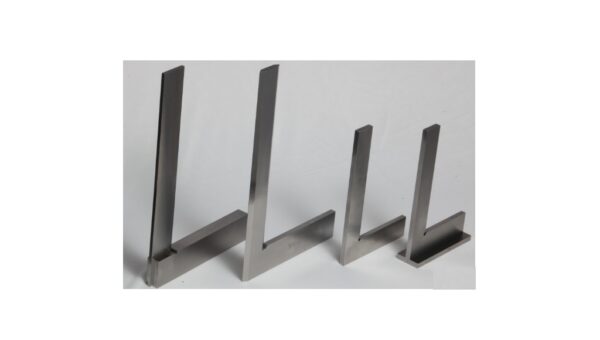

Hardened & Ground Tri-Square (Flat Edge without Stock)

REQUEST FOR QUOTE BELOW

Features :

  • Series AA-410
  • Accuracy as per IS-2013-1972
  • Single piece design made from imported OHNS.
  • Squares having accurate right angles both inside & outside.
  • Beams and Blades are accurately tapped for straightness & parallelism.
  • All squares are fully hardened to 55HRC ±2HRC
  • Beam is grooved at inner corner for clearance of burns & dirt.
  • Packed in individual wooden Box.
Sr.No Cat. No. Size in mm
L x W x H
1 AA-4101 50 x 30 x 4
2 AA-4102 75 x 50 x 4.5
3 AA-4103 100 x 70 x 5
4 AA-4104 150 x 100 x 6
5 AA-4105 200 x 140 x 7
6 AA-4106 250 x 165 x 8
7 AA-4107 300 x 200 x 8
8 AA-4108 400 x 250 x 10

Additional information

Range

100L-70W-5T mm, 150L-100W-6T mm, 200L-140W-7T mm, 250L-160W-8T mm, 300L-200W-8T mm, 400L-200W-10T mm, 50L-35W-4T mm, 75L-50W-4.5T mm
