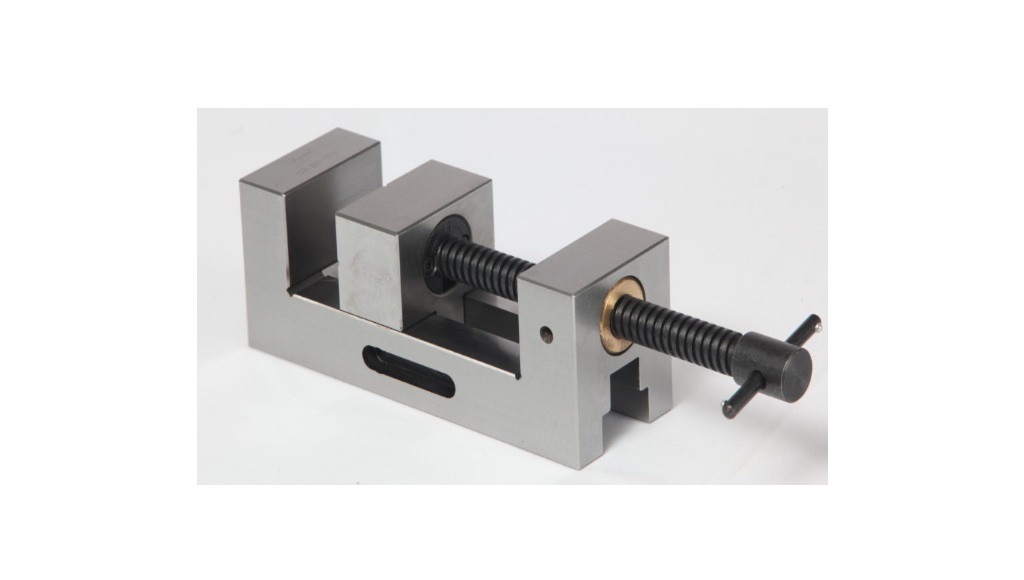

Hardened & Ground Precision Grinding Vice with Screw

REQUEST FOR QUOTE BELOW

Features :

  • Series AA-481
  • All sides are grounded, having accuracy for parallelism, flatness & squareness within ±0.005 mm up till Cat No. AA-4813.
    For Cat No. AA-4814, the accuracy is ±0.010 mm.
  • Manufactured from high grade oil hardening steel, hardened & tempered to ensure stability & accuracy throughout the unit’s working life.
  • This vice is provided with a clamping screw having square thread & a gun metal brush.
Sr.No Cat. No. Size in mm
L x W x H
Jaw Opening
(Q) in mm
Height of Jaw
(M) in mm
1 AA-4811 150 x 48 x 60 0-75 30
2 AA-4812 180 x 63 x 70 0-90 40
3 AA-4813 200 x 73 x 80 0-100 45
4 AA-4814 235 x 96 x 96 0-125 56

Additional information

Range

150:L-48:W-60:Hmm / Jaw Opening 0-75mm, 180:L-63:W-70:Hmm / Jaw Opening 0-90mm, 200:L-73:W-80:Hmm / Jaw Opening 0-100mm, 235:L-96:W-96:Hmm / Jaw Opening 0-200mm
