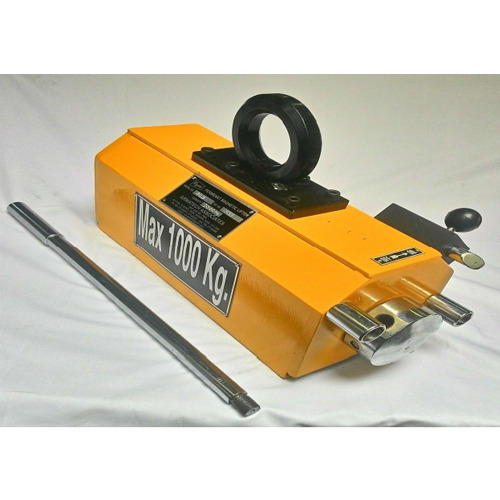

Crystal Permanent Magnetic Lifter

REQUEST FOR QUOTE BELOW

Features :

  • Series AA-311
  • Permanent Magnetic Lifters are compact in design & are used for lifting flat & round steel.
  • Lifters are packed with highest quality rare earth neodymium magnetic material.
  • The handle locks in ON position with a safety lock to prevent unintentional operation.
  • They require no power consumption,
  • As no electric power is required there is no danger of accident due to failure of electric supply.
  • Permanent Magnetic Lifter are tested for a factor of safety of three times the recommended capacity.
  • They are supplied with third party test certificate.
  • The safety factor is required due to such variables as surface condition, contact area, alloy content and material thickness and may need to be increased if these conditions are particularly adverse.
Sr.No Cat.No. Size in mm (With Hook)
L x W x H
Lifting Capacity
(Kg)
Tested Capacity
(Kg)
Self Weight
(In Kg)
1 AA-3111 A1 110 X 60 X 140 100 300 4
2 AA-3111 A2 174 X 70 X 160 200 600 10
3 AA-3111 200 X 100 X 185 300 900 15
4 AA-3112 258 X 100 X 190 450 1350 21
5 AA-3112 A3 258 X 100 X 190 500 1500 21
6 AA-3113 282 X 110 X 220 600 1800 26
7 AA-3114 302 X 110 X 225 700 1500 21
8 AA-3115 370 X 150 X 260 1000 3000 65
9 AA-3116 456 X 180 X 272 1500 1500 125
10 AA-3117 510 X 230 X 350 2000 6000 180
