Plain Magnetic Stands

REQUEST FOR QUOTE BELOW

Features :

  • Series AA-161
  • A powerful Permanent Magnetic Base holds firmly to any steel or iron surface-horizontally, vertically or up-side down.

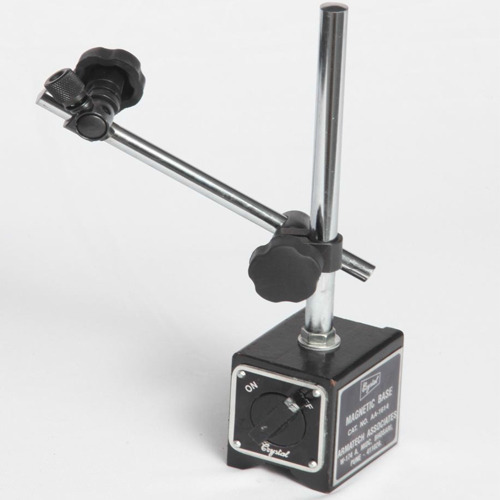

Series AA-1614 :

  1. This magnetic base comes without fine adjustment.
  2. ON/OFF knob is provided for ease of operation.
Sr.No Cat. No. Base Size in mm
L * W * H
Total Height with Column Size mm Magnetic Pull
1 AA-1614 60*50*60 235 55 Kg

Series AA-1616 :

  1. The dial stand can be locked in any desired position in 360° by a central locking mechanism provided on the top assembly.
  2. There is a clamping hole intended for Dia 8mm stem and also there is a dovetail clamp level type dial indicator.
  3. Fine adjustment is provided
Sr.No Cat. No. Base Size in mm
L * W * H
Total Height with Column Size mm Magnetic Pull
1 AA-1616 60*50*60 230 55 Kg

Additional information

Range

50W-55H-60L-230 (With Fine), 50W-55H-60L-230 (Without Fine)
