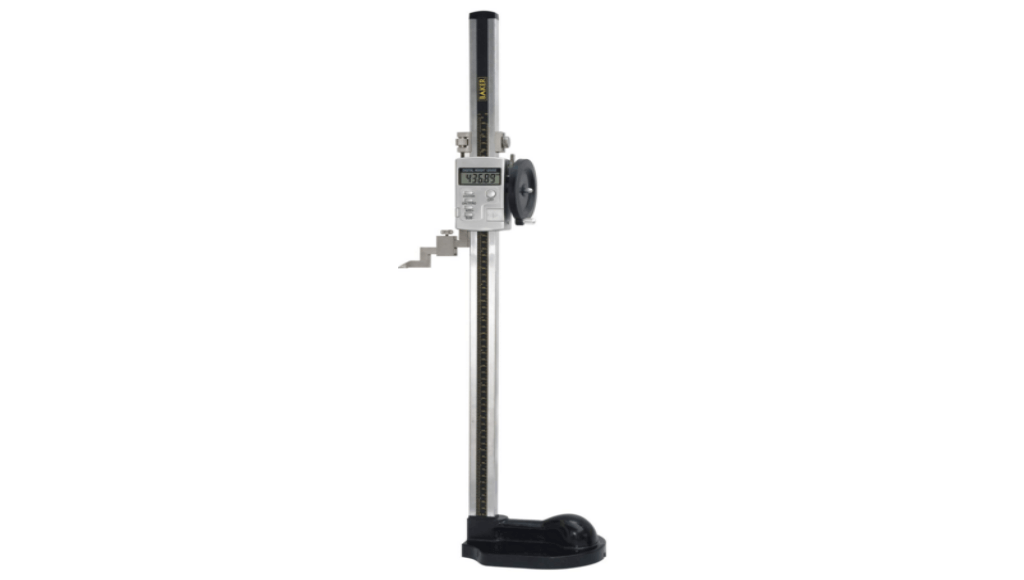

Digital Height Gauge

REQUEST FOR QUOTE BELOW

Features :

  • Robustly constructed, Stainless Steel column with clearly marked scale graduation.
  • A clear Multifunction Digital LCD display runs smoothly on the Analog vertical scale.
  • Fine adjustment with lock provided for ease of setting.
  • For easy and precise maneuverability, the base has a specially designed thumb grip.
  • Fitted with metal rack for a better life.
  • Carbide tipped scriber helps fine scribing on work pieces.
  • Inch/mm conversion of measurement value at any position on the scale.
  • User defined Preset value can be entered at any position on the scale.
  • Zero can be set on any point on the scale; suitable for relative and Absolute measurement.
  • Carbide tipped scriber.
  • Functions consist of Power ON/OFF. Powered by easily replaceable silver oxide battery.  Absolute/Incremental mode, mm/in., Preset, Hold, and Tolerance setting.
  • Each gauge carries a calibration certificate giving actual values.
  • Measurements and transfer of heights, scribing and marking of work pieces and other measurement like run out, center distance etc. by using a lever type dial indicator.
  • Operating environment – Temperature 5 to 45 degrees C at < or = 80% Humidity.
TYPE READING RANGE
DH300 0-300 mm / 0-12″ 0.01 mm / 0.0005″
DH600 0-600 mm / 0-24″ 0.01 mm / 0.0005″
